Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 - 6

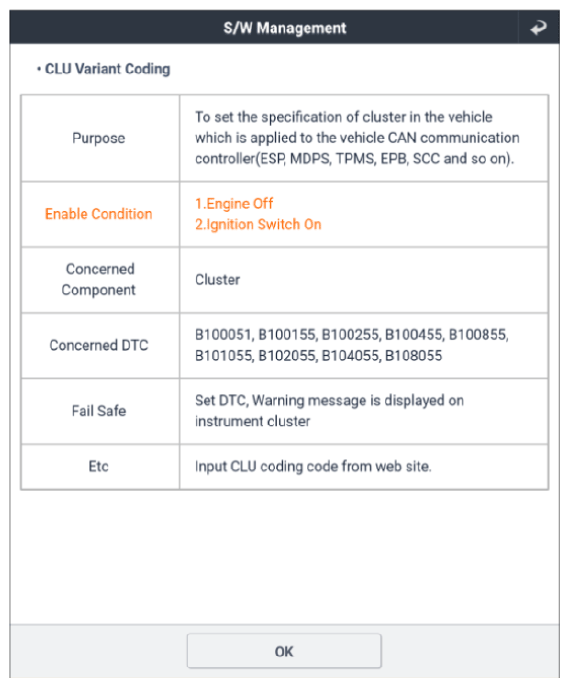

G12993151Courtesy of KIA MOTORS AMERICA, INC.

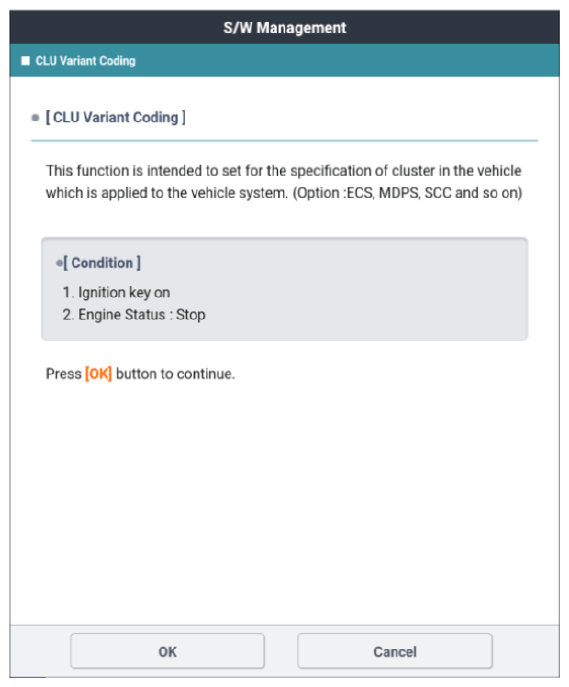

G12993152Courtesy of KIA MOTORS AMERICA, INC.

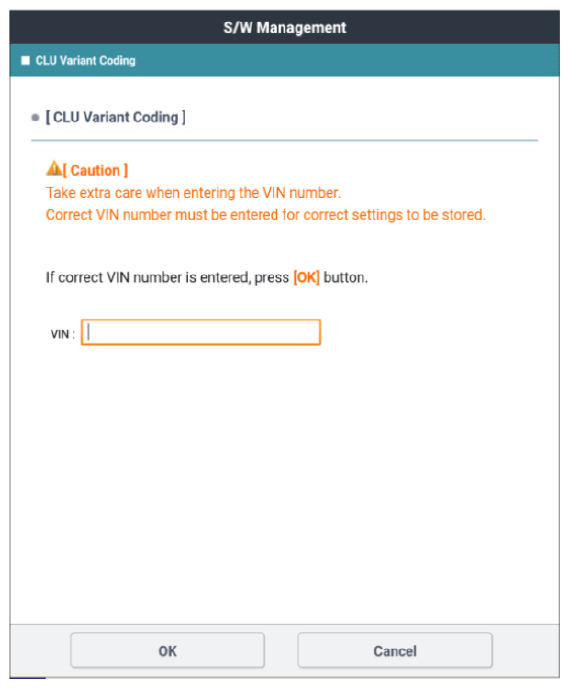

G12993153Courtesy of KIA MOTORS AMERICA, INC.

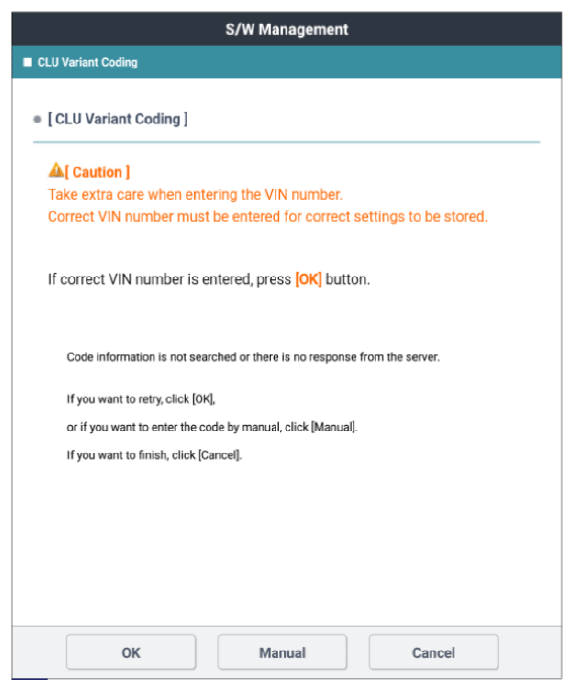

G12993154Courtesy of KIA MOTORS AMERICA, INC.

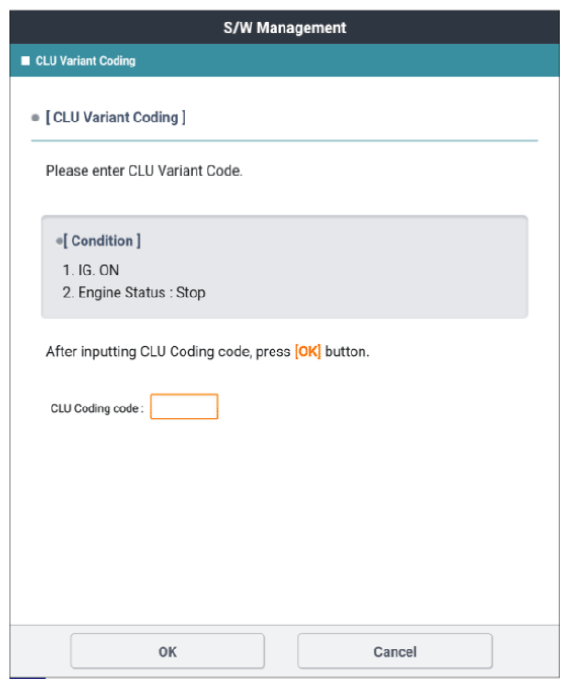

G12993155Courtesy of KIA MOTORS AMERICA, INC.

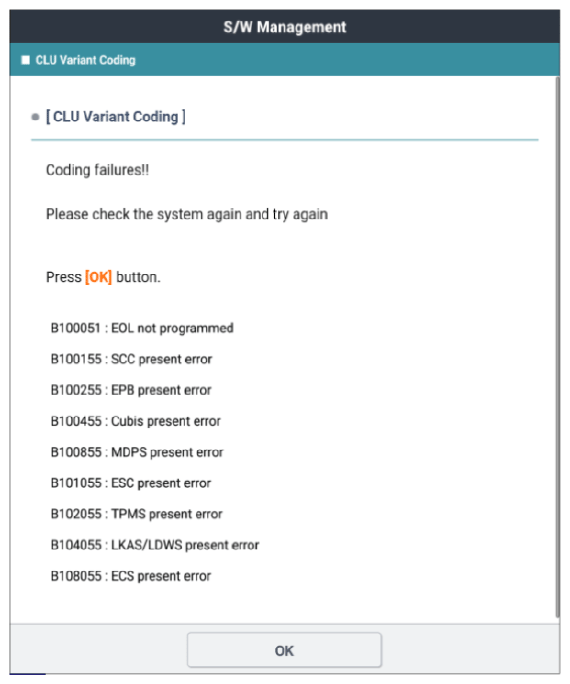

G12993156Courtesy of KIA MOTORS AMERICA, INC.
