Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 - 6

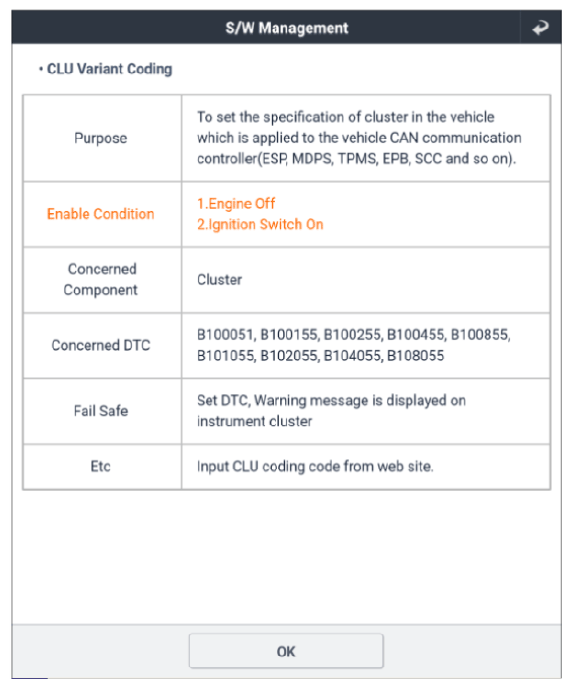

G12993131Courtesy of KIA MOTORS AMERICA, INC.

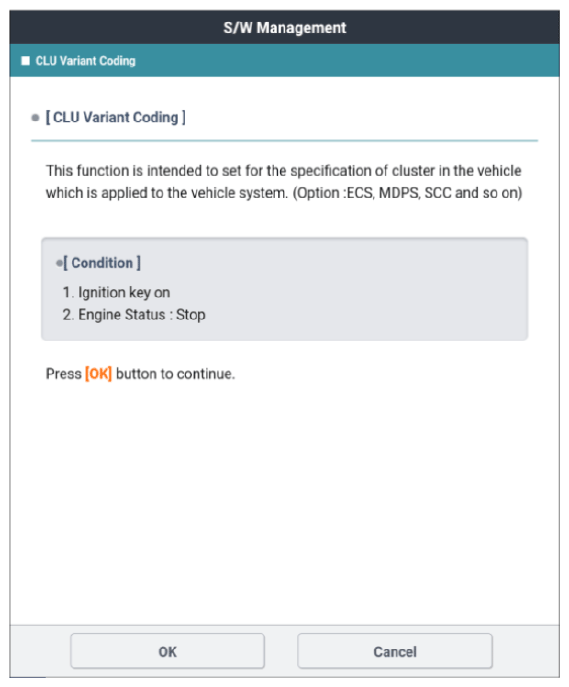

G12993132Courtesy of KIA MOTORS AMERICA, INC.

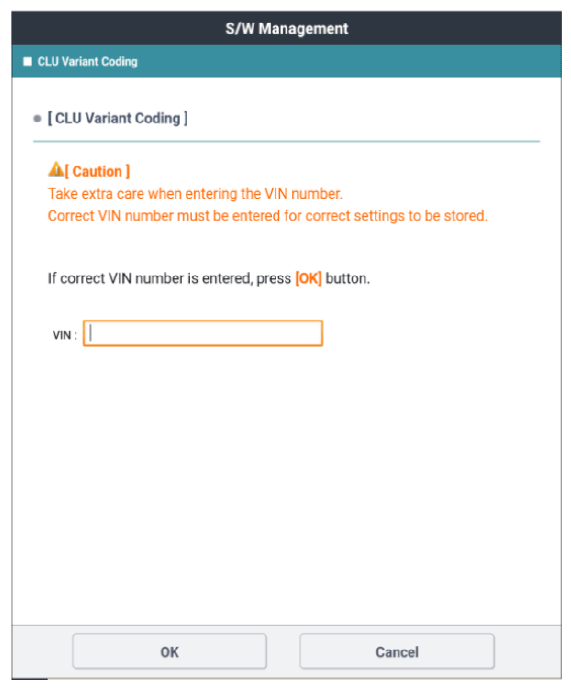

G12993133Courtesy of KIA MOTORS AMERICA, INC.

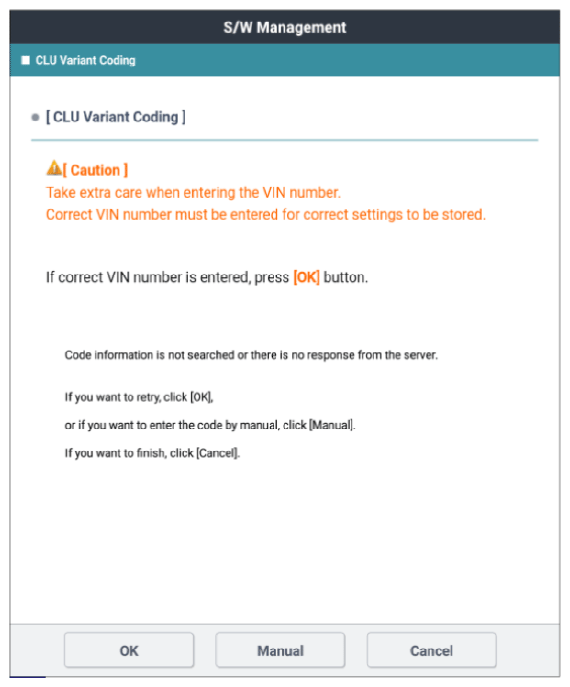

G12993134Courtesy of KIA MOTORS AMERICA, INC.

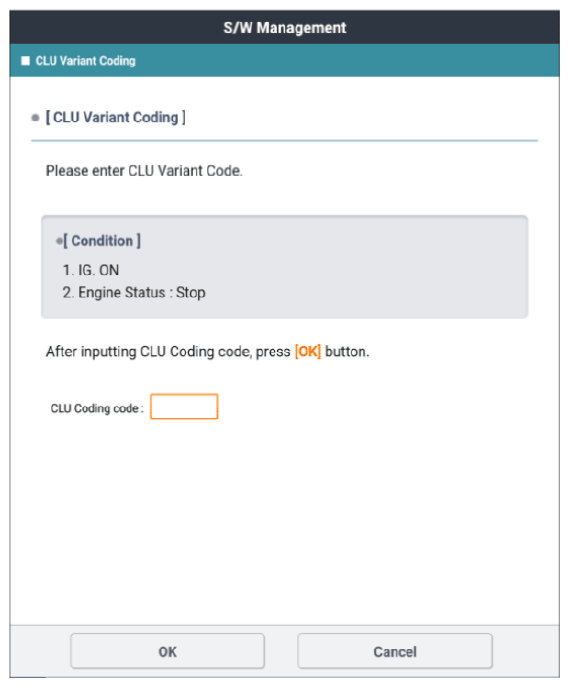

G12993135Courtesy of KIA MOTORS AMERICA, INC.

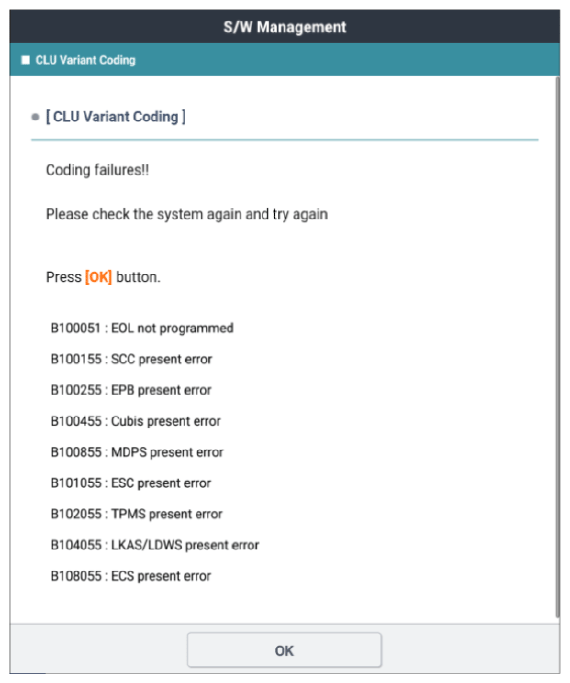

G12993136Courtesy of KIA MOTORS AMERICA, INC.
