Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 - 6

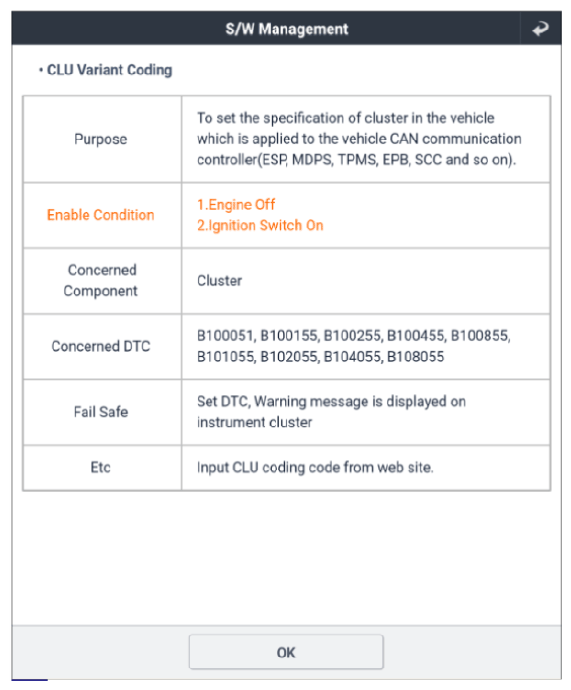

G12993111Courtesy of KIA MOTORS AMERICA, INC.

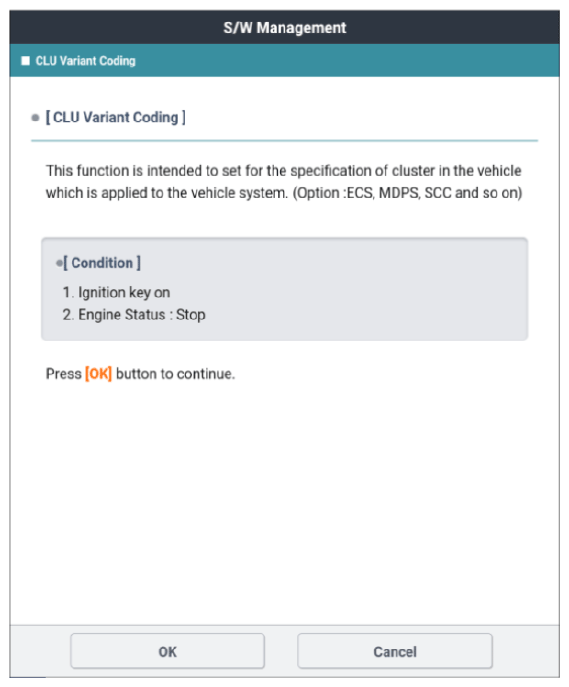

G12993112Courtesy of KIA MOTORS AMERICA, INC.

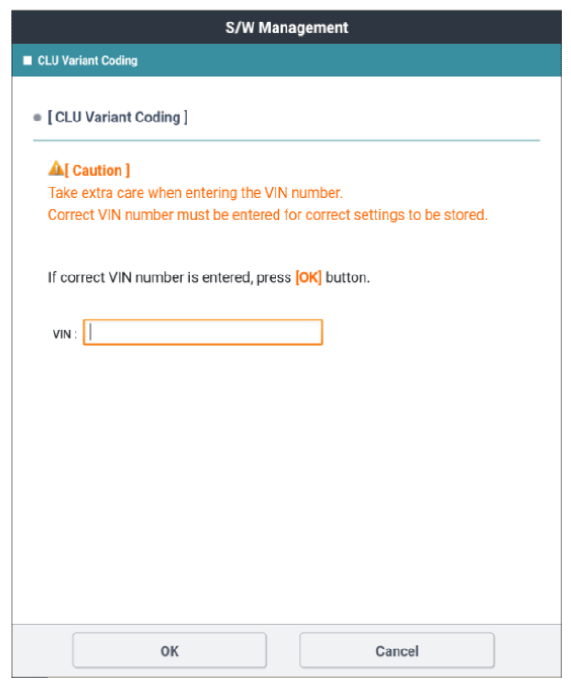

G12993113Courtesy of KIA MOTORS AMERICA, INC.

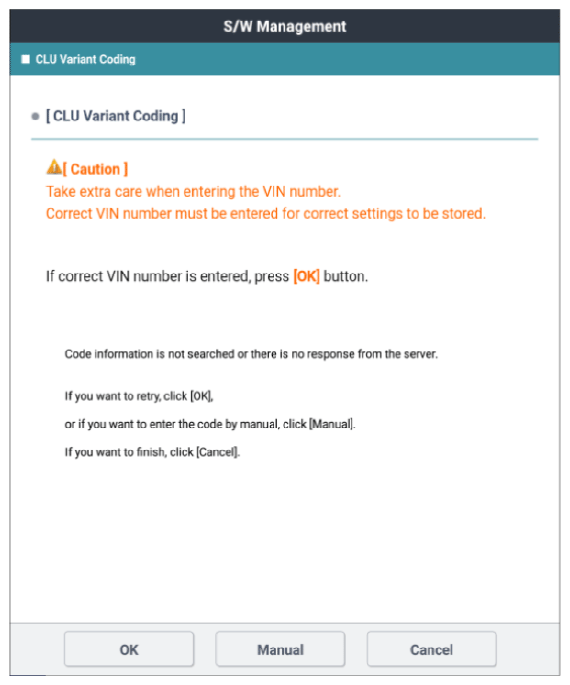

G12993114Courtesy of KIA MOTORS AMERICA, INC.

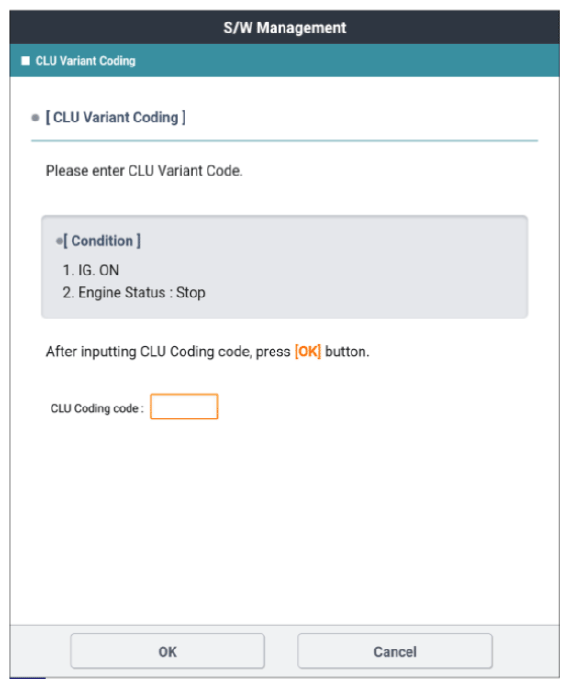

G12993115Courtesy of KIA MOTORS AMERICA, INC.

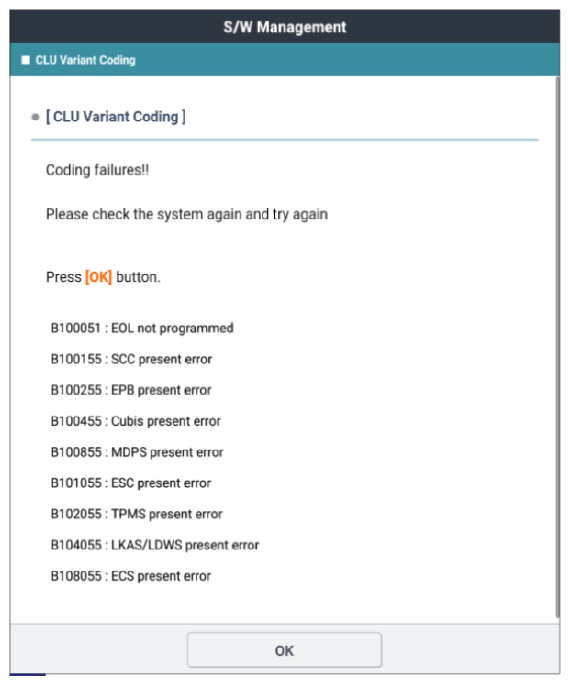

G12993116Courtesy of KIA MOTORS AMERICA, INC.
