Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 - 6

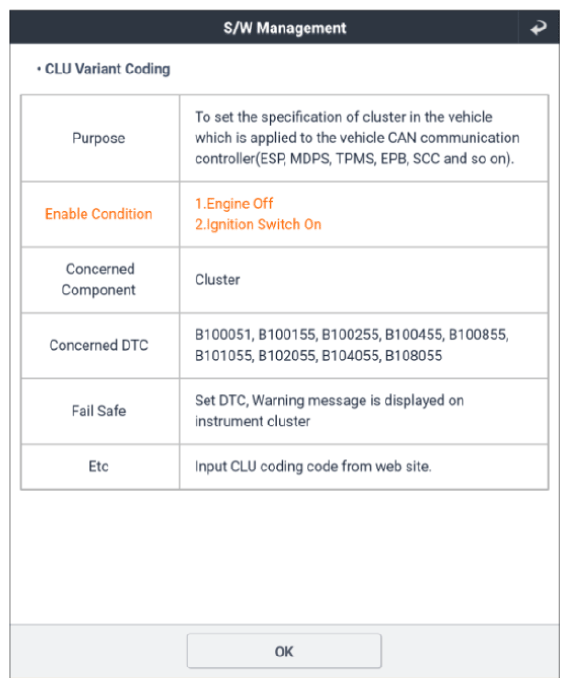

G12993091Courtesy of KIA MOTORS AMERICA, INC.

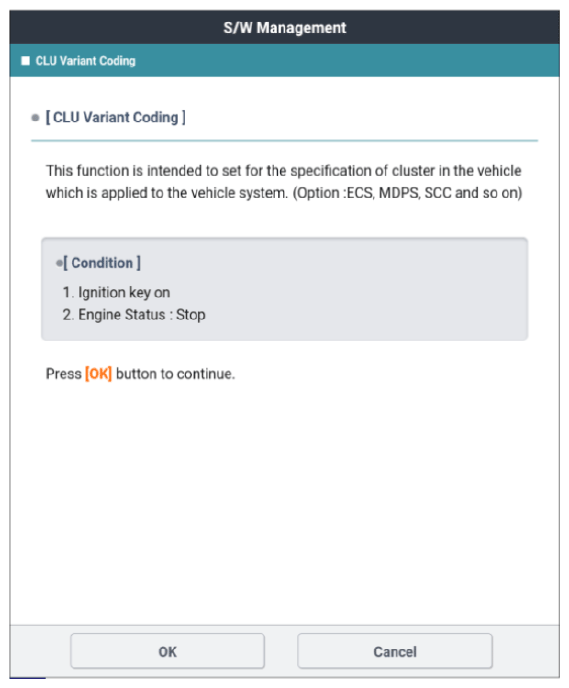

G12993092Courtesy of KIA MOTORS AMERICA, INC.

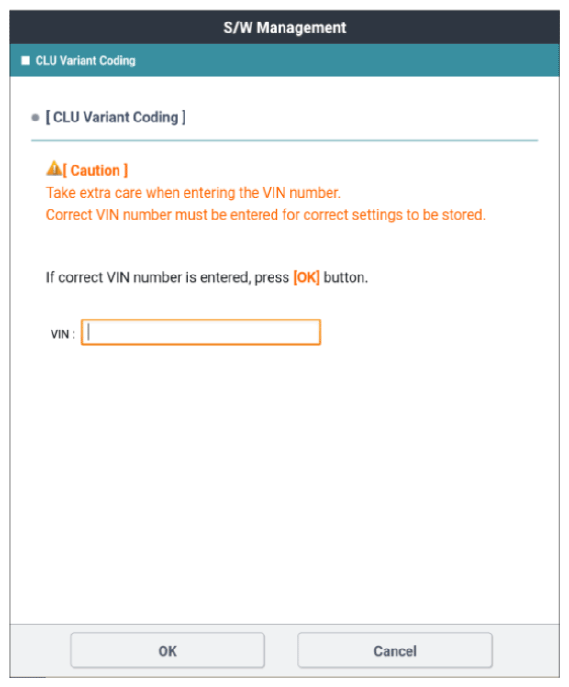

G12993093Courtesy of KIA MOTORS AMERICA, INC.

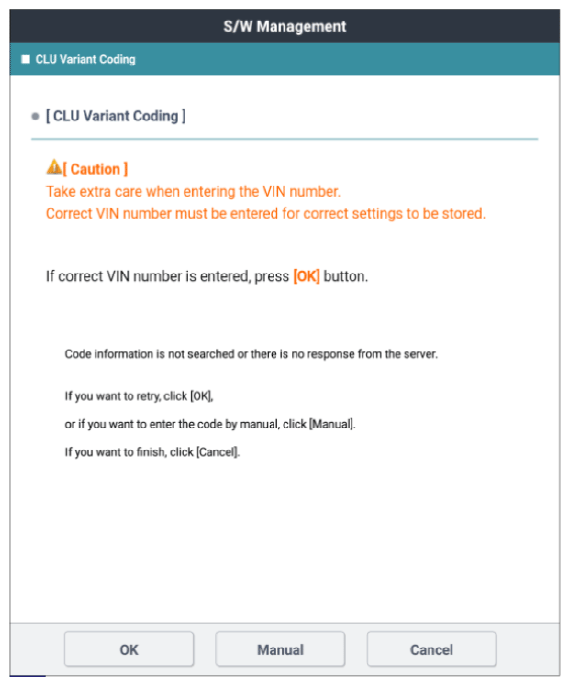

G12993094Courtesy of KIA MOTORS AMERICA, INC.

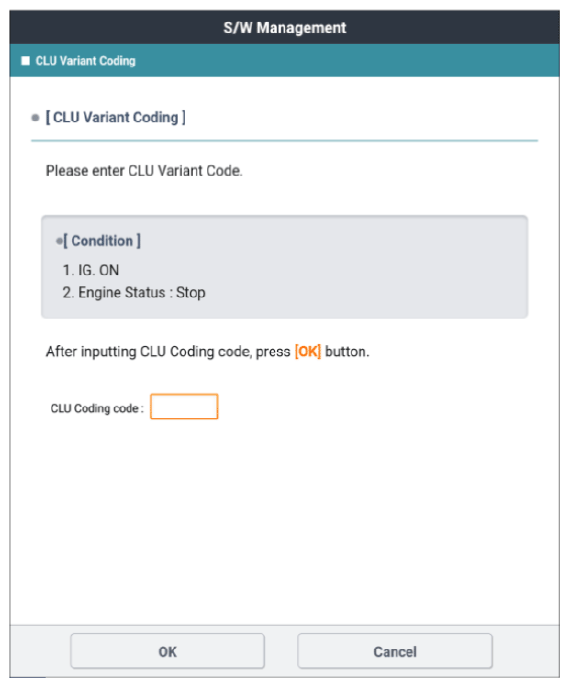

G12993095Courtesy of KIA MOTORS AMERICA, INC.

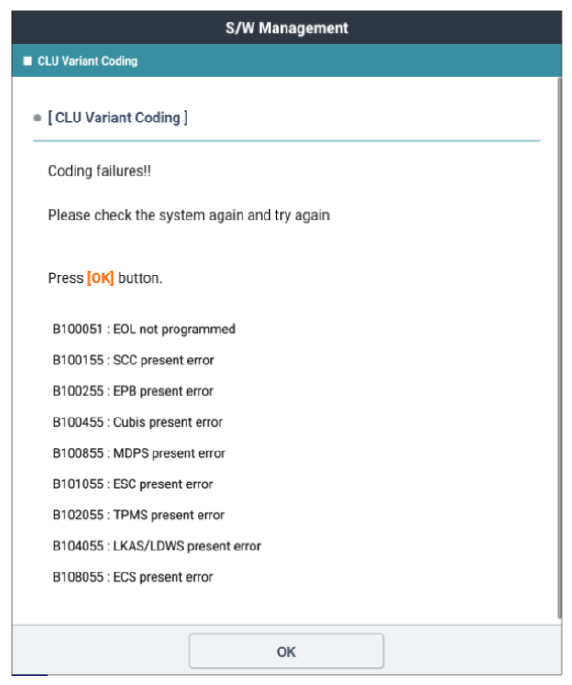

G12993096Courtesy of KIA MOTORS AMERICA, INC.
