Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 - 6

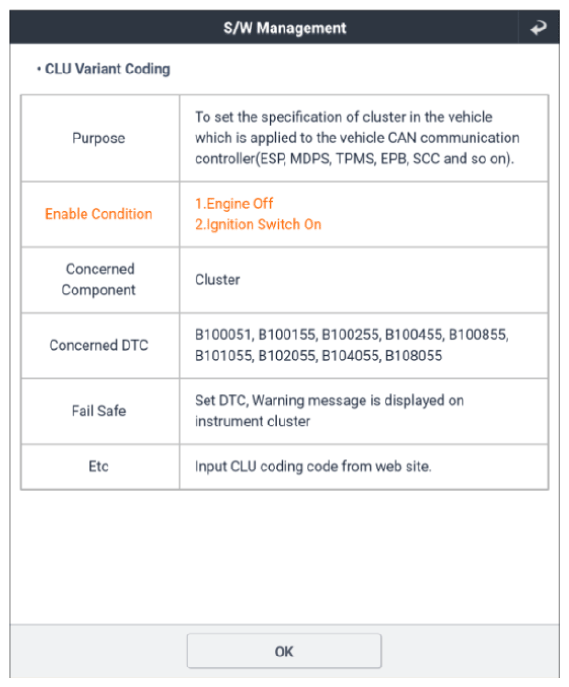

G12993071Courtesy of KIA MOTORS AMERICA, INC.

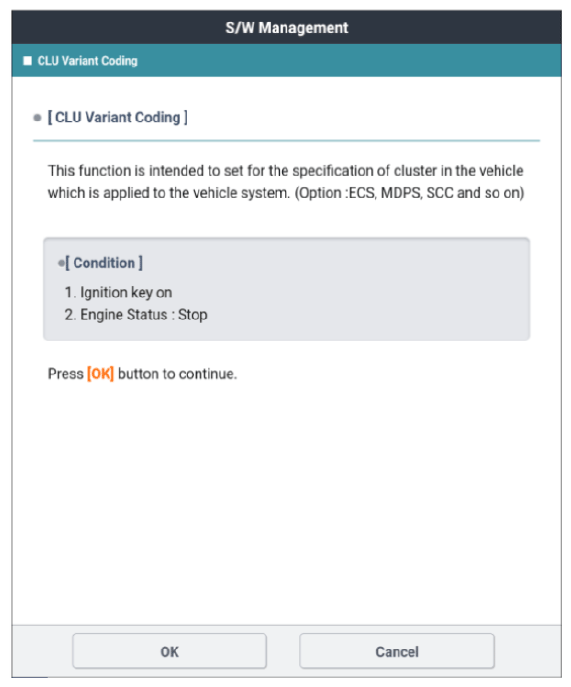

G12993072Courtesy of KIA MOTORS AMERICA, INC.

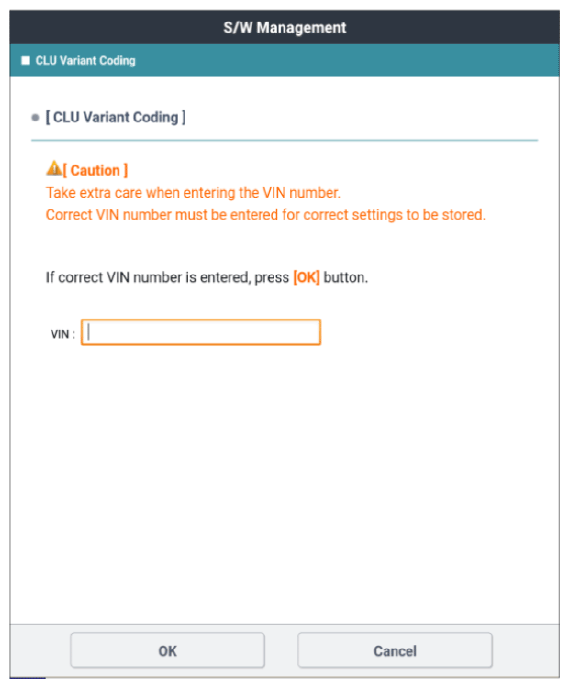

G12993073Courtesy of KIA MOTORS AMERICA, INC.

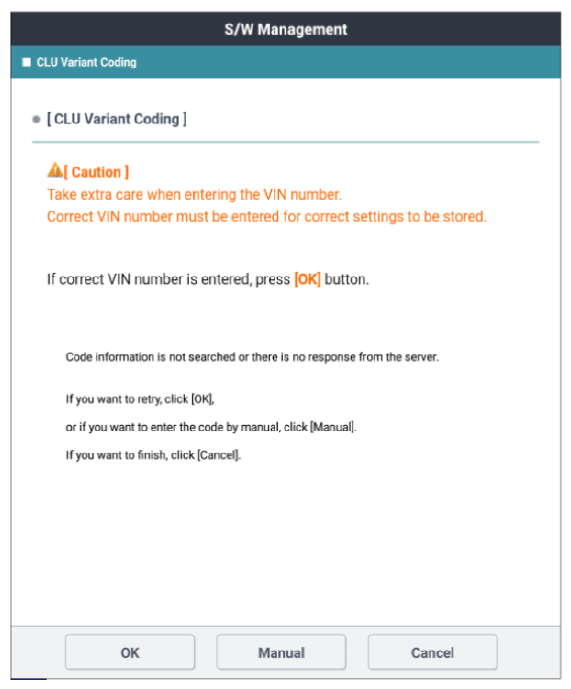

G12993074Courtesy of KIA MOTORS AMERICA, INC.

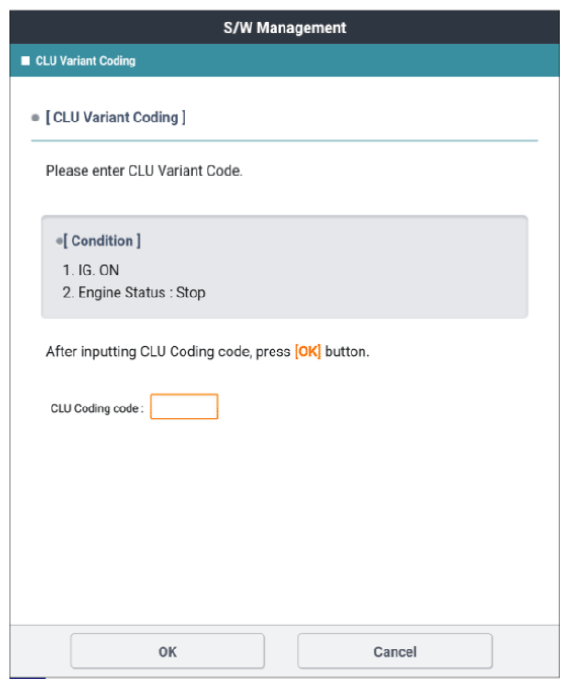

G12993075Courtesy of KIA MOTORS AMERICA, INC.

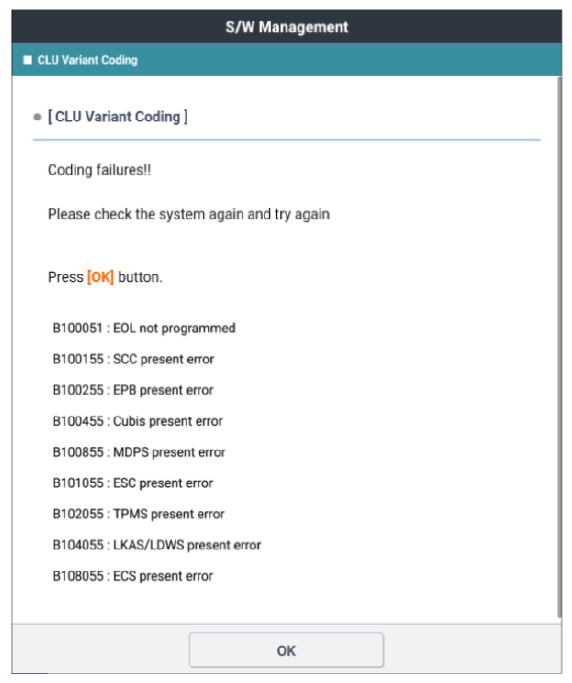

G12993076Courtesy of KIA MOTORS AMERICA, INC.
