Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 - 6

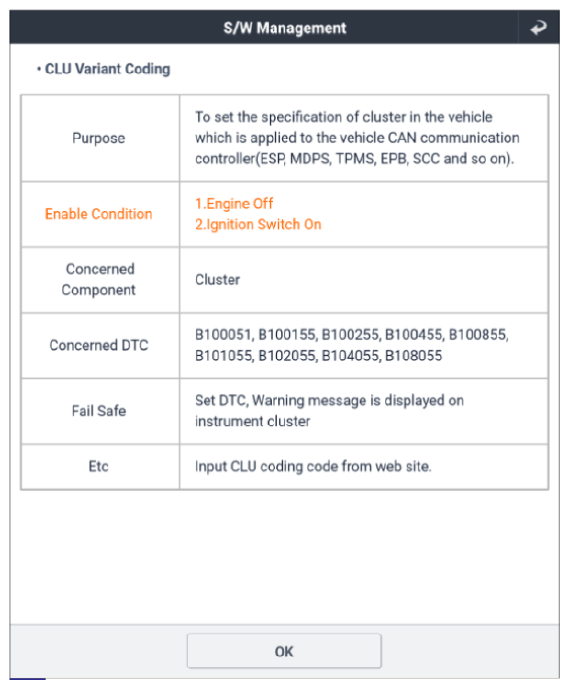

G12993051Courtesy of KIA MOTORS AMERICA, INC.

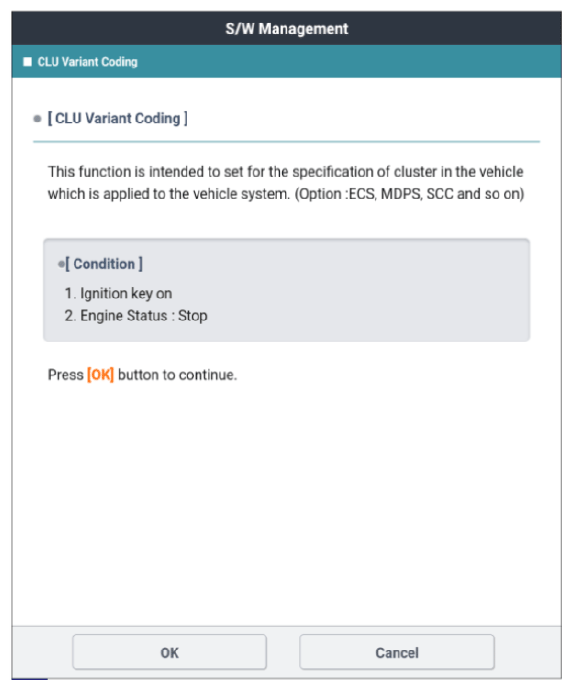

G12993052Courtesy of KIA MOTORS AMERICA, INC.

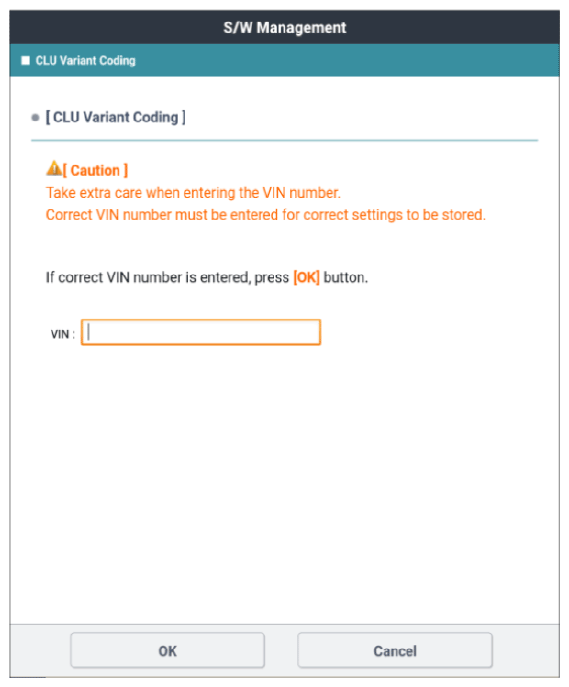

G12993053Courtesy of KIA MOTORS AMERICA, INC.

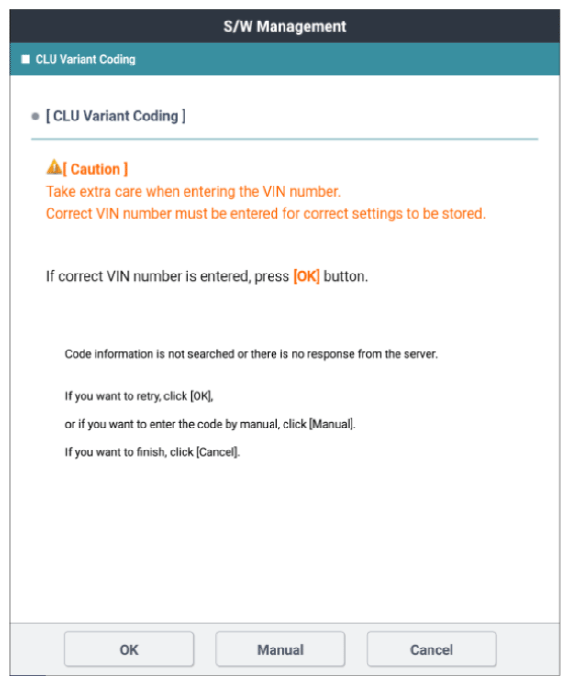

G12993054Courtesy of KIA MOTORS AMERICA, INC.

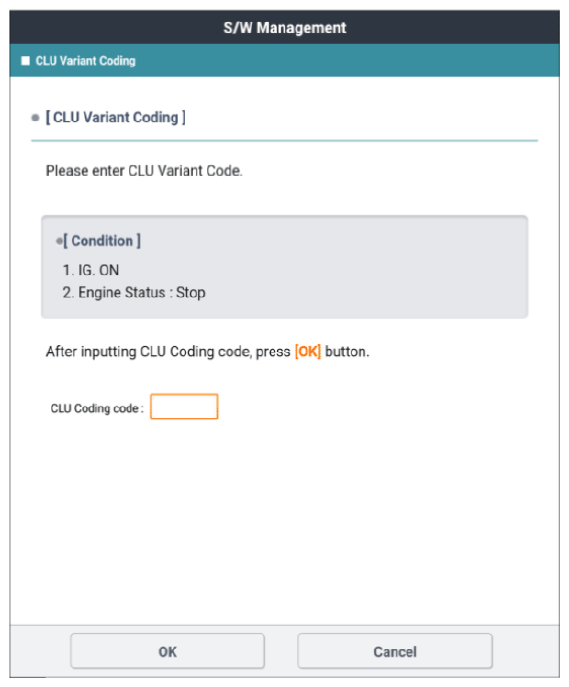

G12993055Courtesy of KIA MOTORS AMERICA, INC.

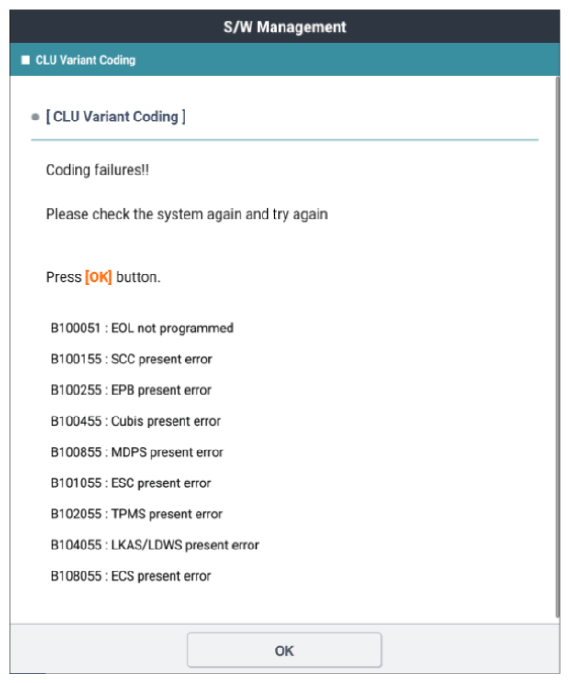

G12993056Courtesy of KIA MOTORS AMERICA, INC.
