Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - " GLOVE BOX HOUSING  ")

  3. Disconnect the blower motor connector (A).

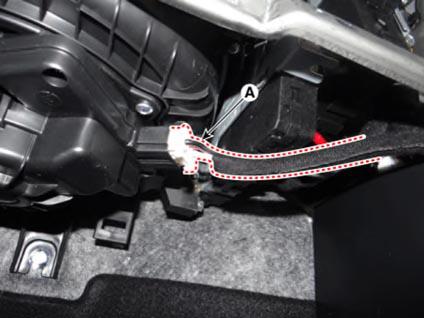

    G13005422Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the body control module connectors (A).

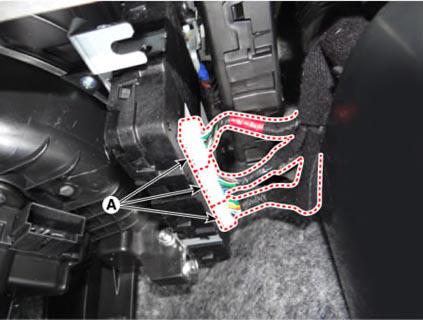

    G13005423Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the body control module (A) after loosening the mounting bolts and nuts.

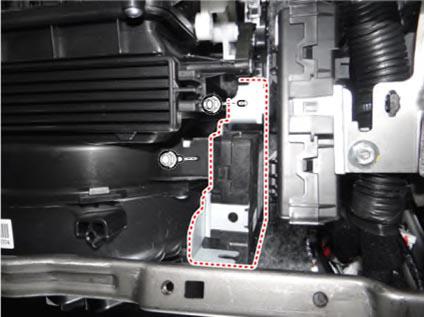

    G13005424Courtesy of KIA MOTORS AMERICA, INC.

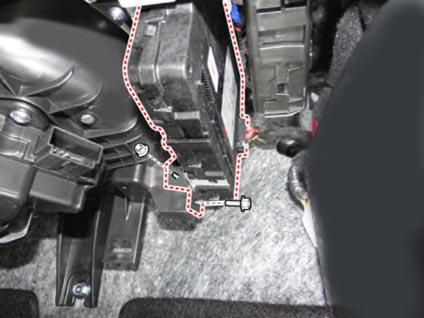

    G13005425Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the body control module (B) after disconnecting the connector (A).

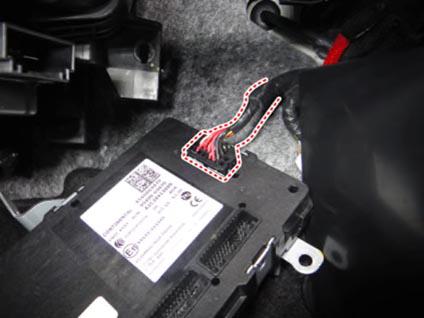

G13005426Courtesy of KIA MOTORS AMERICA, INC.
