Repair Procedures: Adjustment

WARNING: This page is about a different variant/trim than selected.

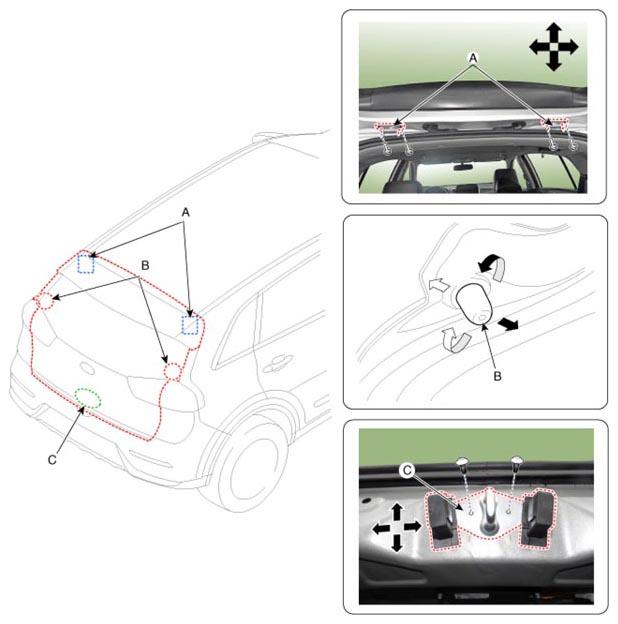

  1. After loosening the Liftgate hinge (A) mounting bolts, adjust the Liftgate by moving it up and down, or right and left.
  2. Adjust the Liftgate height by turning the Liftgate overslam bumpers (B).
  3. After loosening the Liftgate striker (C) mounting bolts, adjust the Liftgate striker by moving it up and down, or right and left.
G13004952Courtesy of KIA MOTORS AMERICA, INC.
