Interior 2 Antenna

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the console upper cover

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

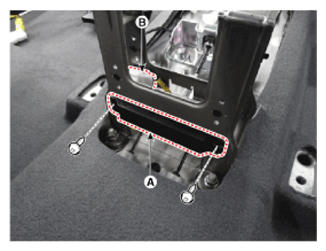

  3. Remove the interior 2 antenna (A) after loosening the mounting screws (2EA) and disconnecting the connector (B).
G12730137Courtesy of HYUNDAI MOTOR AMERICA
