Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The side airbag cannot be disassembled from the seat back assembly, so replace the seat back assembly when replacing the side airbag.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the front seat assembly.

    (Refer to "FRONT SEAT ASSEMBLY ")

  3. Remove the seat back cover.

    (Refer to "FRONT SEAT BACK COVER "

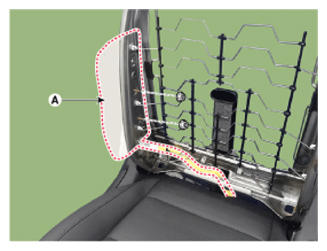

  4. Remove the side airbag (A) after loosening the side airbag mounting nuts.
    G12728067Courtesy of HYUNDAI MOTOR AMERICA
