Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.

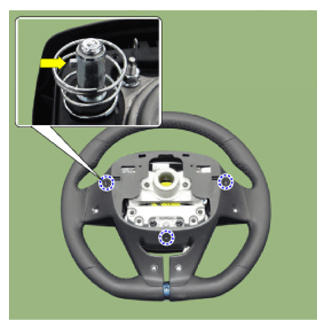

  2. Remove the driver airbag module by putting in a flat tool (ø5mm) into the guide hole and then press the spring.
    G12728050Courtesy of HYUNDAI MOTOR AMERICA

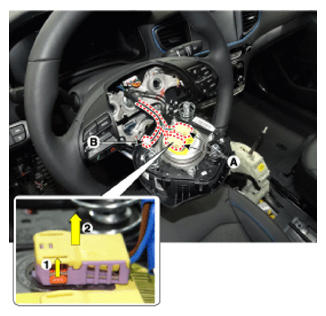

  3. Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).
    G12728051Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  4. Remove the steering wheel.

    (Refer to "STEERING WHEEL ")

  5. Remove the Steering Column Shroud Panel.

    (Refer to "STEERING COLUMN SHROUD PANEL ")

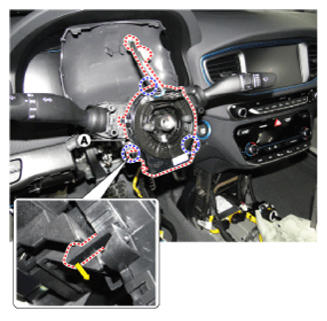

  6. Remove the clock spring (A) after disconnecting the clock spring connectors (B).
    G12728052Courtesy of HYUNDAI MOTOR AMERICA
