Tailgate Lid Handle

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate latch.

    (Refer to Body - "TAILGATE LATCH ")

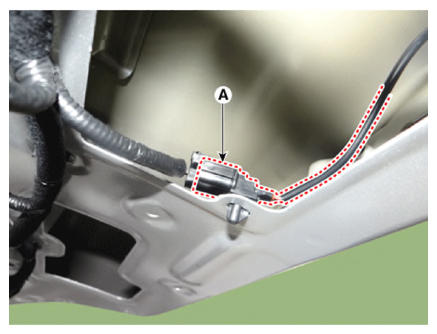

  2. Disconnect the connector (A) and remove the wiring fixing clip.
    G13438945Courtesy of KIA MOTORS AMERICA, INC.

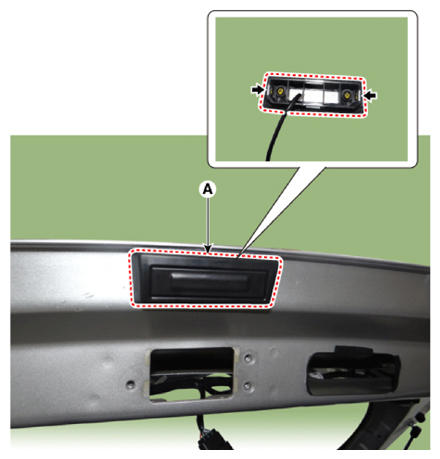

  3. Remove the tailgate lid handle (A) after pushing the hooks.
G13438946Courtesy of KIA MOTORS AMERICA, INC.
