Circuit Inspection

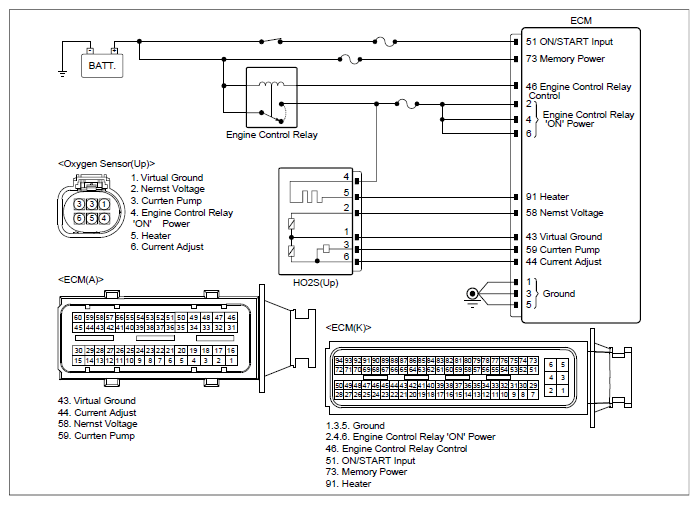

G12689282Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal

  1. Ignition "OFF".
  2. Disconnect the battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component and ECM.
 O2 sensor (up) connector 5 (control) Chassis ground - ∞ (infinite)Ω

  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 O2 sensor (up) connector 4 (power) Chassis ground - B+
O2 sensor (up) connector 5 (control) Chassis ground - Approx. 2.5V (duty)

Good

No Good
