Component Inspection: Notes

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Engine "ON" and WOT.	TPS connector	4 (TPS 1)	TPS connector	5 (TPS 2)	Fig 1

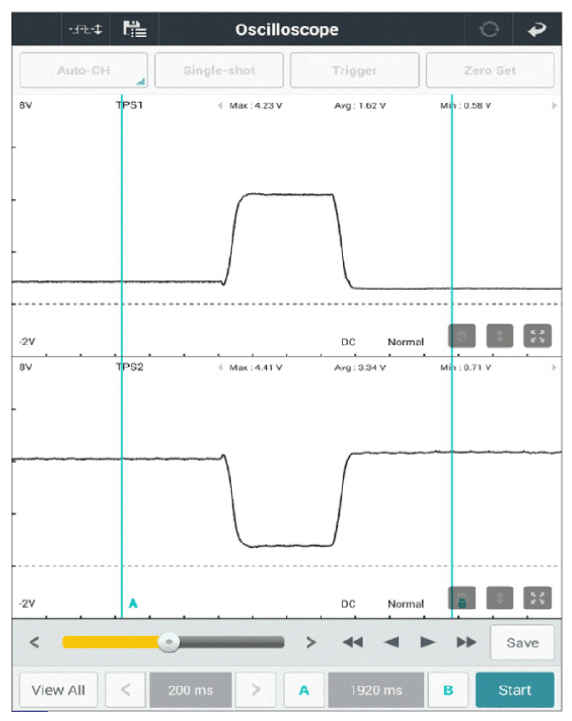

Fig 1: Screen Display - Normal Signal Waveform Of Throttle Position Sensor At Engine WOT

Courtesy of KIA MOTORS AMERICA, INC.

Good

If no problems were found with the circuits or connectors, replace the ECM and go to "VERIFICATION OF REPAIR " procedure.

No Good

If no problems were found with the circuits or connectors, replace the throttle body and go to "VERIFICATION OF REPAIR " procedure.
