Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below

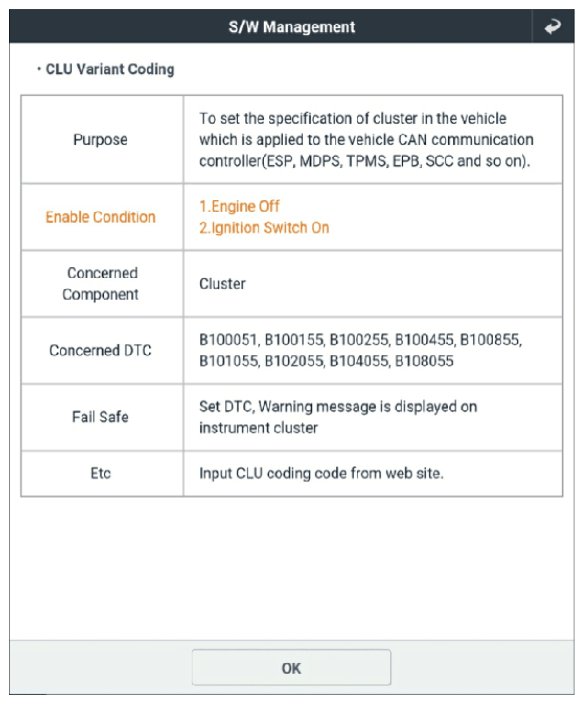

G12699126Courtesy of KIA MOTORS AMERICA, INC.

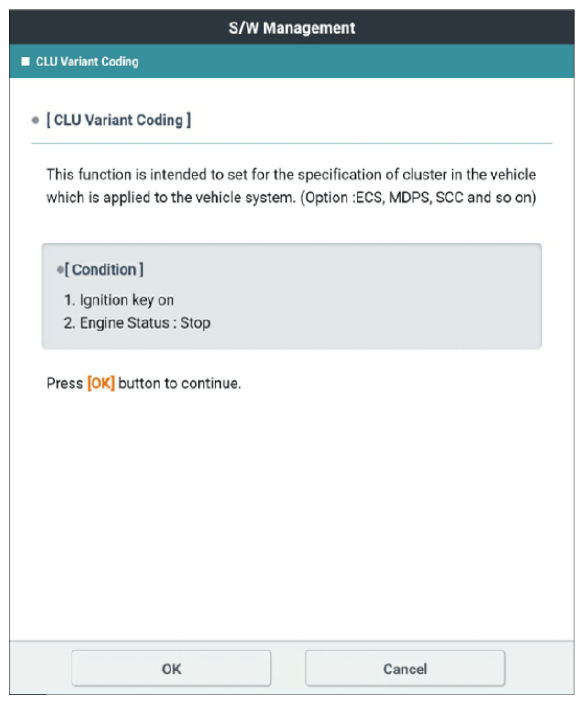

G12699127Courtesy of KIA MOTORS AMERICA, INC.

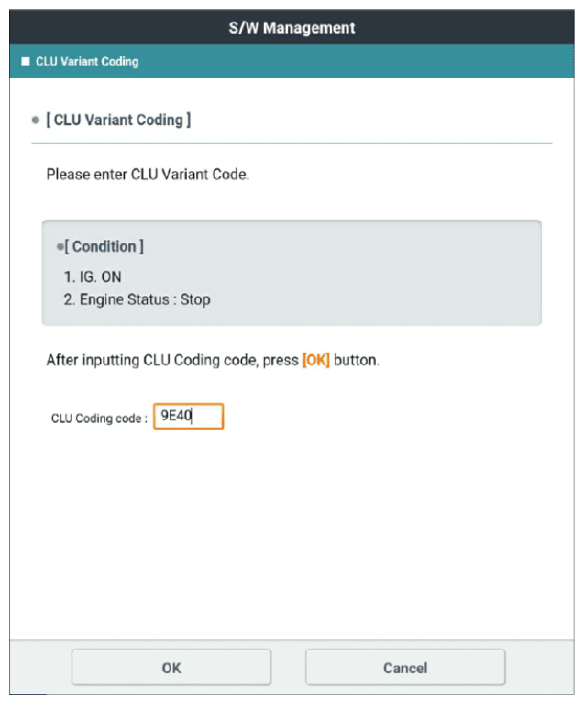

G12699128Courtesy of KIA MOTORS AMERICA, INC.

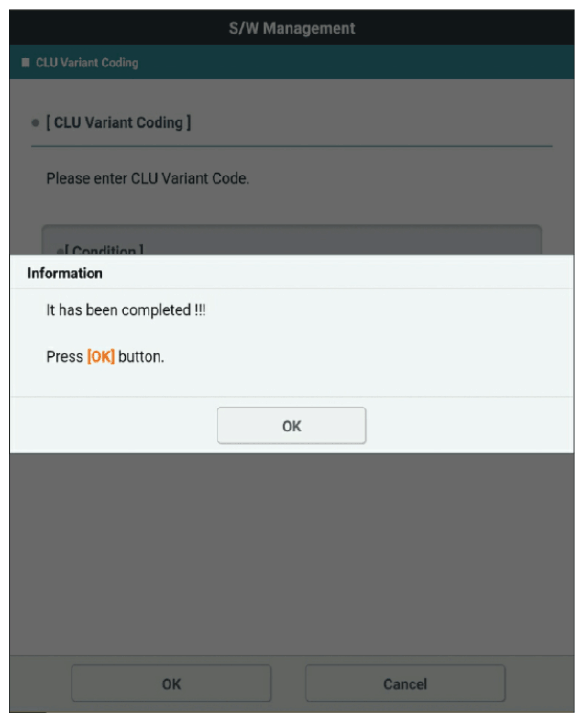

G12699129Courtesy of KIA MOTORS AMERICA, INC.
