Liftgate Lock Module Inspection

  1. Remove the liftgate trim.

    (Refer to Body - " LIFTGATE TRIM  ")

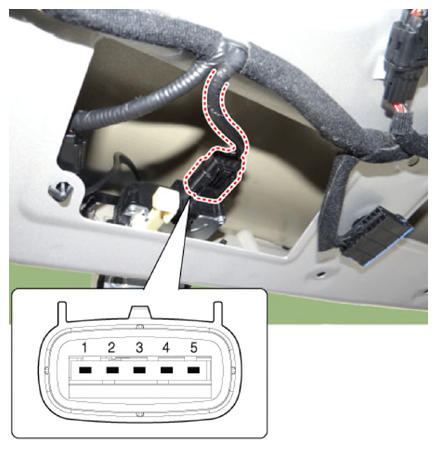

  2. Disconnect the connectors from the actuator.
    G12698473Courtesy of KIA MOTORS AMERICA, INC.

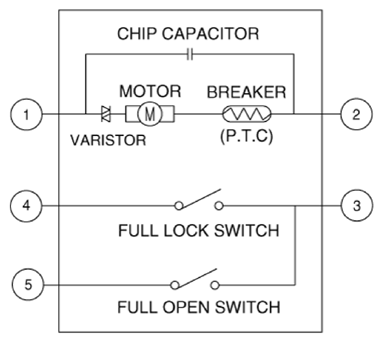

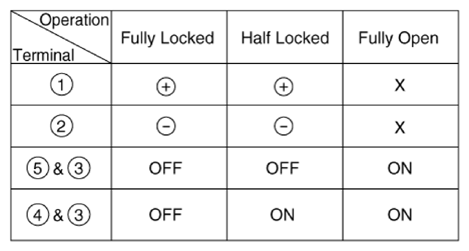

  3. Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
    G12698474Courtesy of KIA MOTORS AMERICA, INC.
    G12698475Courtesy of KIA MOTORS AMERICA, INC.
  4. Checking the liftgate of the vehicle power option power refers to the liftgate module.
