Interior 1 Antenna

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - " FLOOR CONSOLE (PHEV)  ")

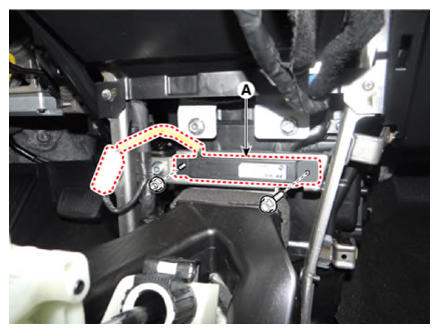

  3. Remove the interior 1 antenna (A) after loosening the mounting bolt and nut and disconnecting the connector.
    G12704245Courtesy of KIA MOTORS AMERICA, INC.
