Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - " STEERING WHEEL  ")

  3. Remove the steering back cover (A) after loosening the mounting screws.

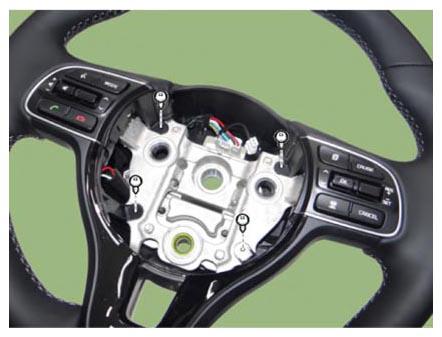

    G12997972Courtesy of KIA MOTORS AMERICA, INC.

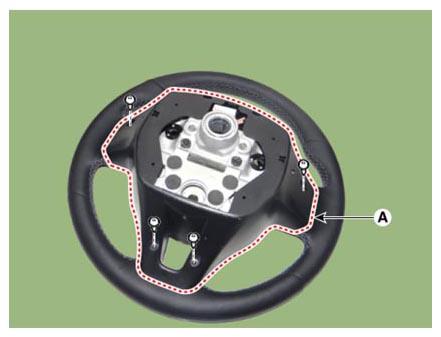

    G12997973Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the wiring connector (A) from the steering back cover.

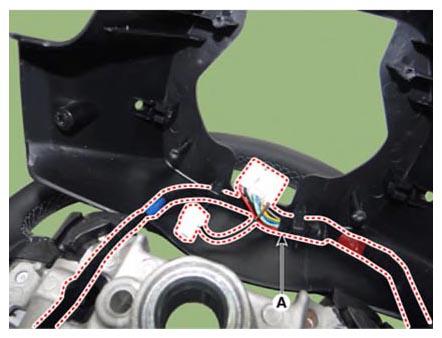

    G12997974Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the steering wheel remote control connector (A).

    [LH]

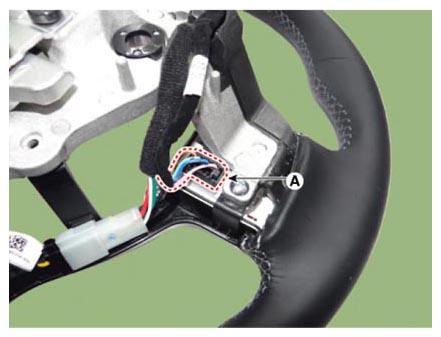

    G12997975Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

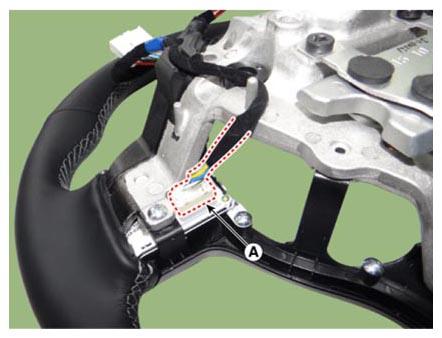

    G12997976Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

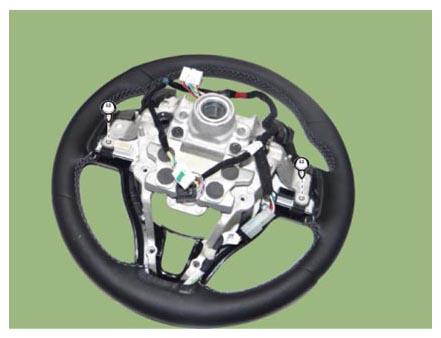

    G12997977Courtesy of KIA MOTORS AMERICA, INC.

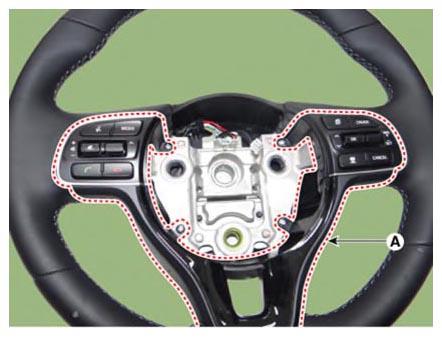

    G12997978Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

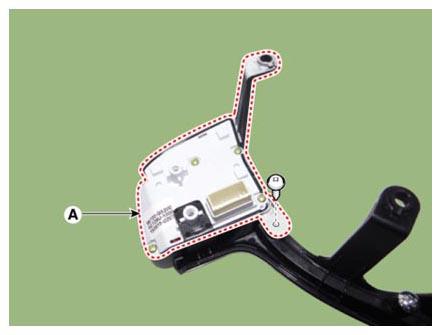

    G12997979Courtesy of KIA MOTORS AMERICA, INC.
