Repair Procedures: Installation

  1. Install in the reverse order of removal.
NOTE:
  • Check the following before installing the gear actuator assembly.
  1. Check that the gear actuator is placed in the "neutral" state.

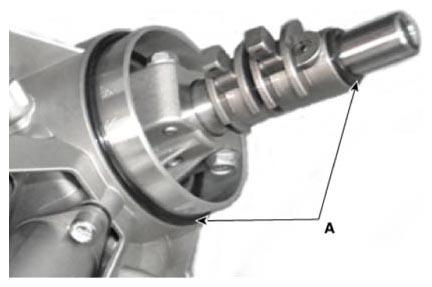

  2. Check the assembled state of the O-rings (A).
    G12998592Courtesy of KIA MOTORS AMERICA, INC.
  3. Apply gear oil to the surface of O-rings.

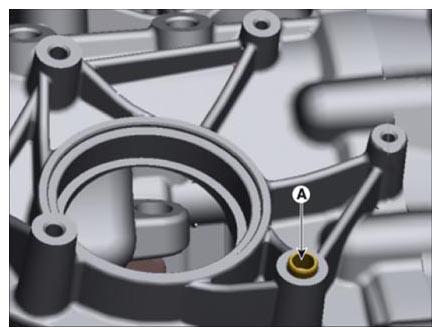

  4. Check the assembled state of the dowel pins (A).
G12998593Courtesy of KIA MOTORS AMERICA, INC.
G12998594Courtesy of KIA MOTORS AMERICA, INC.
