Home >> Kia >> 2019 >> Niro EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System (HEV) >> Clutch Actuator Assembly >> Components

Clutch Actuator Assembly: Components

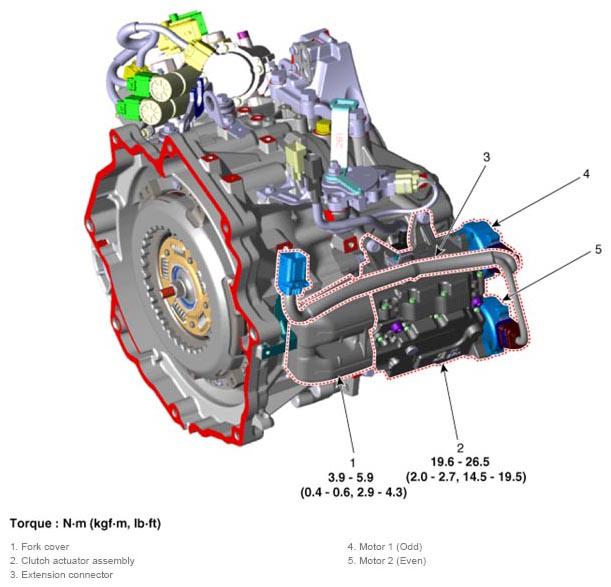

Fig 1: Clutch Actuator Assembly Replacement Components With Torque Specifications

G12998547

Courtesy of KIA MOTORS AMERICA, INC.
