Repair Procedures: Removal: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Put on gloves to prevent hand injuries.
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  1. Disconnect the negative (-) battery terminal.

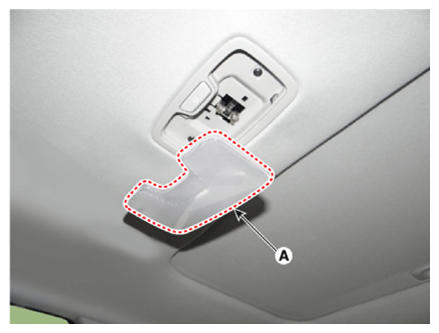

  2. Using a screwdriver or remover, separate the room lamp lens (A) from the room lamp.
    G12698421Courtesy of KIA MOTORS AMERICA, INC.

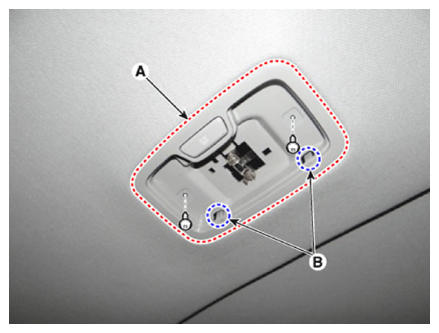

  3. Remove the room lamp (A) after loosening the screws.
    G12698422Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When removing the room lamp, be careful of the direction in which the tool is inserted (B).
    • When inserting the tool in the opposite direction, take caution as the room lamp may be damaged.

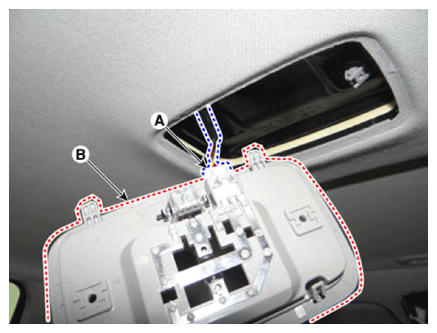

  4. Remove the room lamp assembly (B) after disconnecting the room lamp connector (A).
    G12698423Courtesy of KIA MOTORS AMERICA, INC.
