Liftgate trim
WARNING: This page is about a different variant/trim than selected.

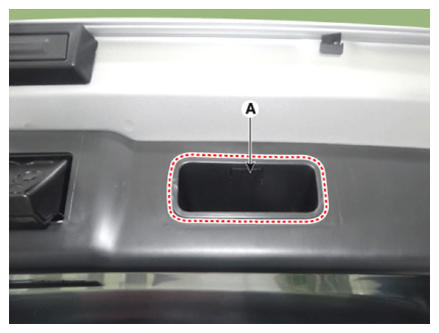

- Remove the Liftgate pull handle caps (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

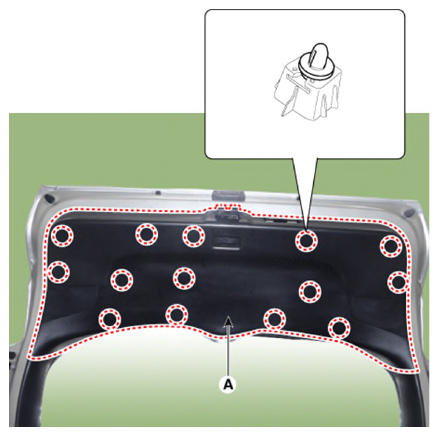

- Remove the Liftgate trim (A) after loosening the mounting screws and clips.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
Information
CAUTION:
Replace any damaged clips.
