Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Remove the seat back cover.

    (Refer to " FRONT SEAT BACK COVER  ")

    NOTE: Improper mounting of the front seat back cover, so interfering with the normal deployment of side airbags and front seat backrest ensure that the cover is well seated.

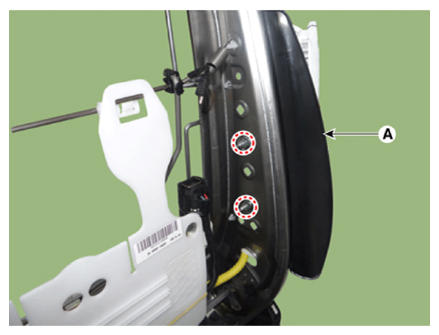

  3. Loosen the side airbag module nuts and then remove the airbag module (A).

    Tightening torque:

    6.0 - 8.0 N.m (0.6 - 0.8 kgf.m, 4.4 - 5.9 lb.ft)

    G12697105Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
