Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

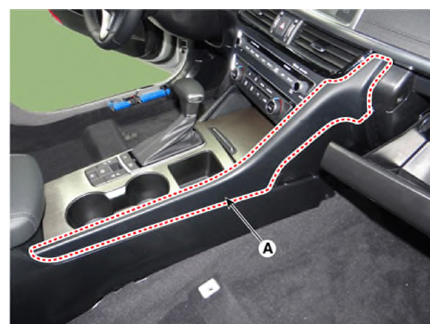

  2. Using a screwdriver or remover, remove the front console garnish (A).
    G12704531Courtesy of KIA MOTORS AMERICA, INC.

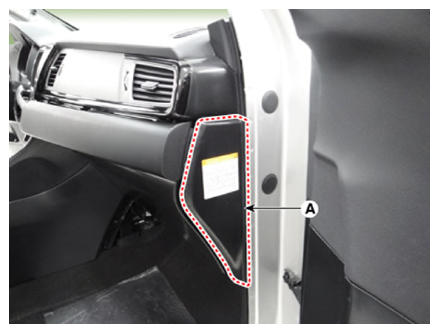

  3. Using a remover, remove the crash pad side cover [RH] (A).
    G12704532Courtesy of KIA MOTORS AMERICA, INC.

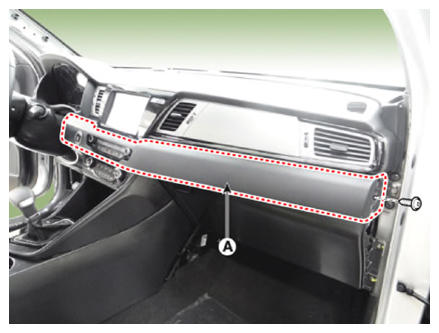

  4. Loosen the screw and remove the crash pad plate [RH] (A).
    G12704533Courtesy of KIA MOTORS AMERICA, INC.

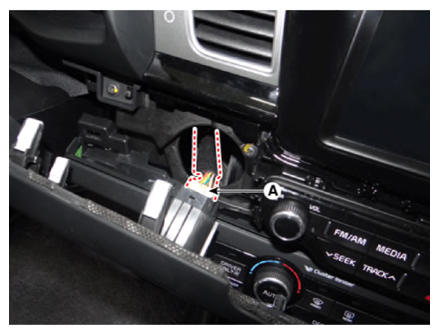

  5. Remove the engine start button connector (A).
    G12704534Courtesy of KIA MOTORS AMERICA, INC.

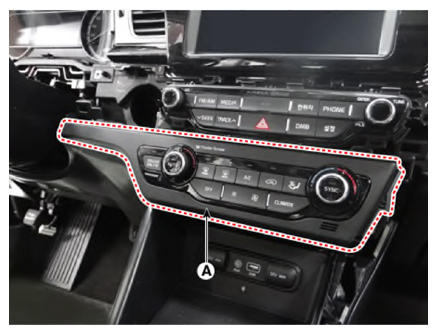

  6. Remove the center fascia panel (A).
    G12704535Courtesy of KIA MOTORS AMERICA, INC.

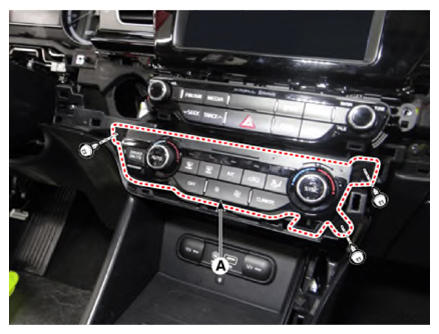

  7. Loosen the screw and remove the heater and air conditioner control unit (A).
    G12704536Courtesy of KIA MOTORS AMERICA, INC.

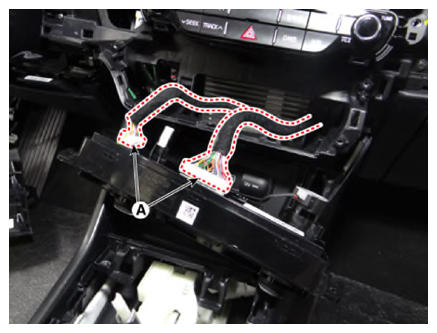

  8. Remove the heater and the air conditioning control unit connector (A).
    G12704537Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
