Hybrid Power Control Unit (HPCU)

WARNING: This page is about a different variant/trim than selected.

Shut off the high voltage circuit.
(Refer to " HIGH VOLTAGE SHUT-OFF PROCEDURES ")
Remove the air cleaner assembly and air duct.
(Refer to " AIR CLEANER ")
Remove the ECM & TCM bracket assembly.
(Refer to " ENGINE CONTROL MODULE ")
Drain the coolant of hybrid motor cooling system.
(Refer to " COOLANT ")

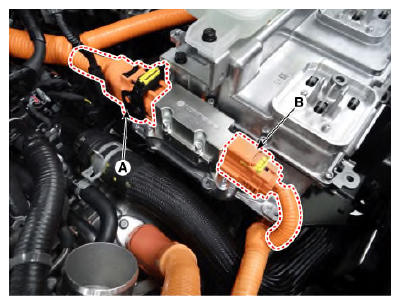

Disconnect the motor power cable connector (A) and HSG power cable connector (B) after loosening the mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.

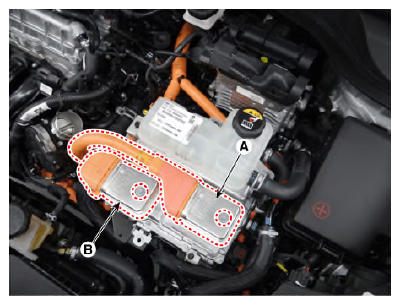

Disconnect the power cable (A) and inverter power cable (B) from the HPCU.

Courtesy of KIA MOTORS AMERICA, INC.

Information

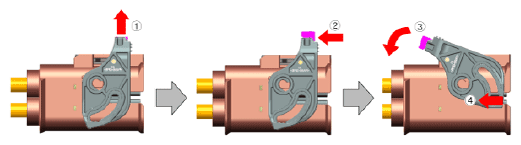

Remove the inverter power cable in the following order.

Courtesy of KIA MOTORS AMERICA, INC.

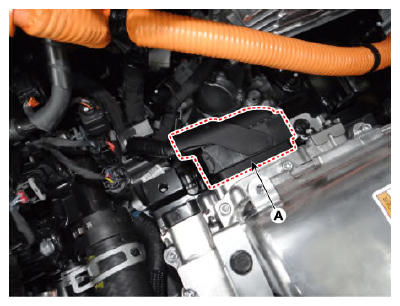

Disconnect the HCU & inverter (MCU) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

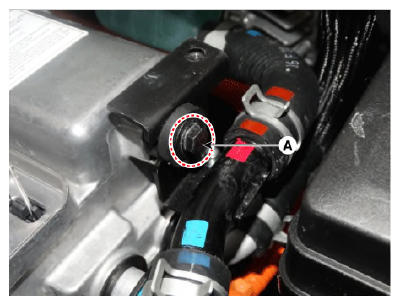

Disconnect the coolant outlet hose & pipe after loosening the mounting bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

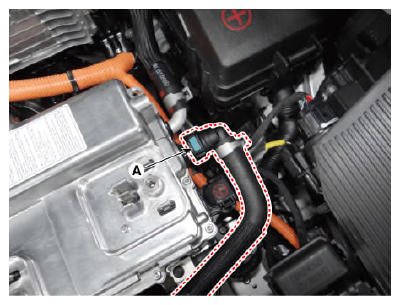

Disconnect the coolant inlet hose quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

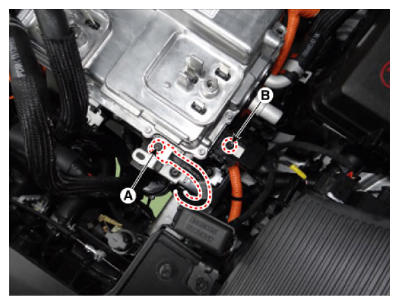

Remove the LDC power outlet cable mounting bolt (A) and ground cable bolt (B).

Courtesy of KIA MOTORS AMERICA, INC.

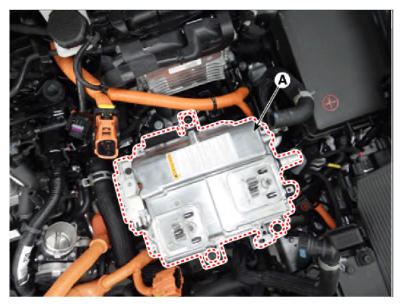

Remove the HPCU (A) after loosening the mounting bolts.
