Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Be sure to read and follow the "GENERAL SAFETY INFORMATION & CAUTION " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
- Be sure to read and follow the "HIGH VOLTAGE SHUT-OFF PROCEDURES " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
- Shut off the high voltage circuit.
(Refer to " HIGH VOLTAGE SHUT-OFF PROCEDURES ")
- Remove the air cleaner assembly and air duct.
(Refer to " AIR CLEANER ")
- Remove the ECM & TCM bracket assembly.
(Refer to " ENGINE CONTROL MODULE ")
- Drain the coolant of hybrid motor cooling system.
(Refer to " COOLANT ")

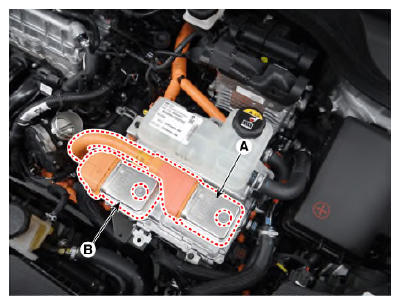

- Disconnect the motor power cable connector (A) and HSG power cable connector (B) after loosening the mounting bolts.

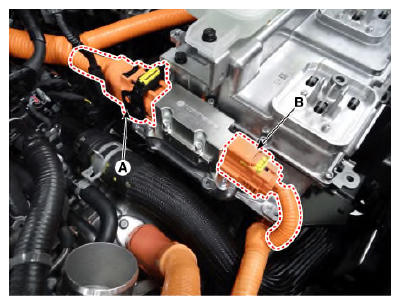

- Disconnect the power cable (A) and inverter power cable (B) from the HPCU.

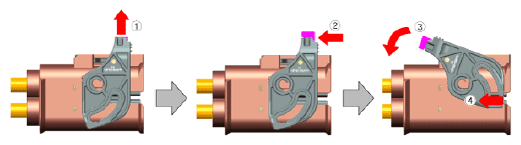

Information

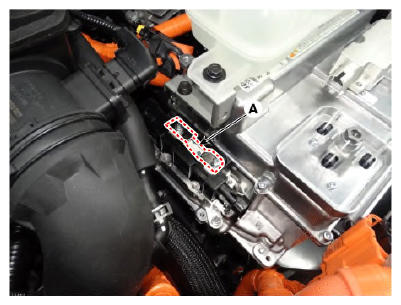

- Remove the DC fuse cover (A) after loosening the mounting bolt.
DC fuse cover installation bolt:
4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

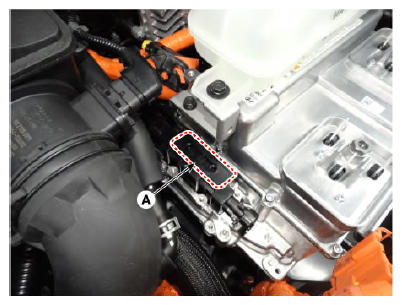

- Remove the DC fuse seal cover (A).

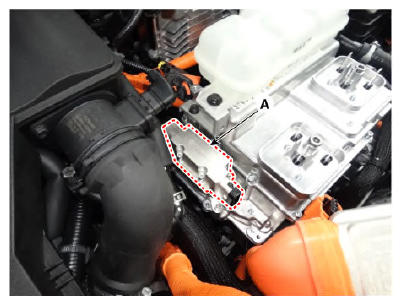

- Remove the DC fuse (A) from the HPCU after loosening the mounting bolt.
DC fuse installation bolt:
9.3 - 10.4 N.m (0.95 - 1.06 kgf.m, 6.9 - 7.7 lb-ft)
