Circuit Diagram

WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.

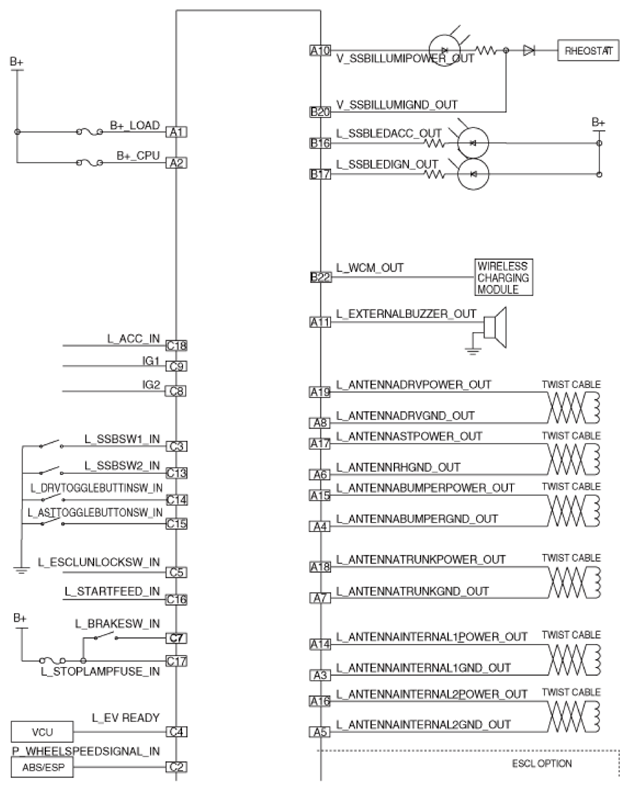

G12730132Courtesy of HYUNDAI MOTOR AMERICA

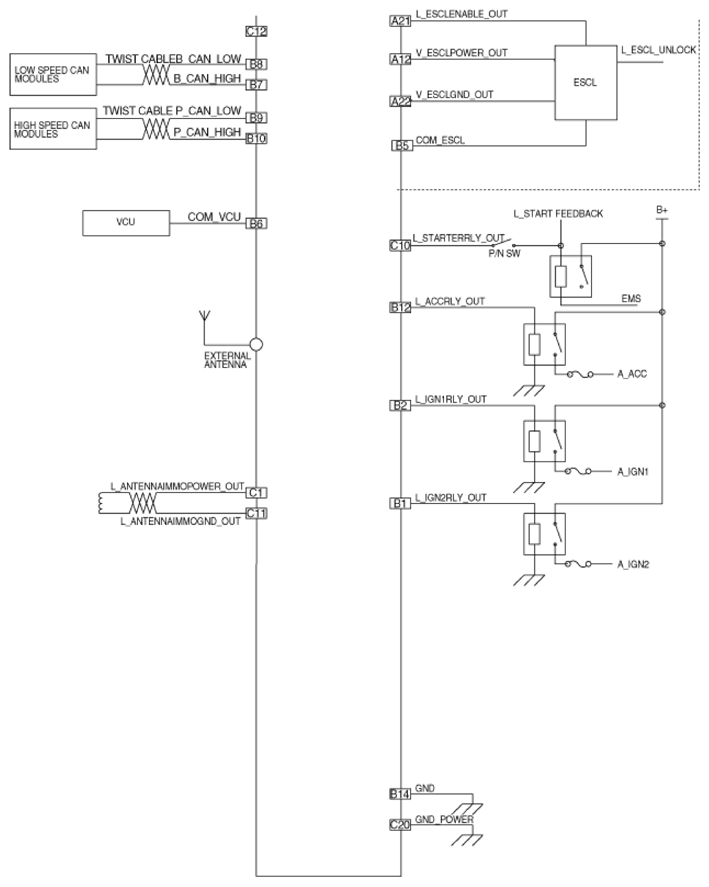

G12730133Courtesy of HYUNDAI MOTOR AMERICA
