Component Inspection: Notes
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

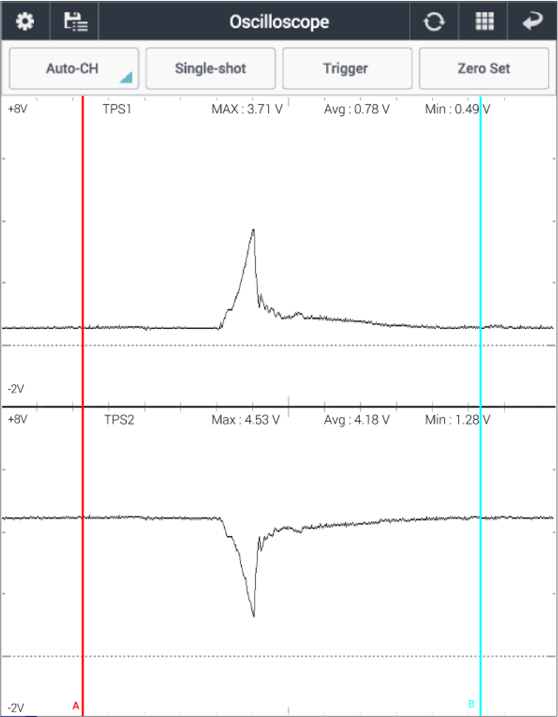

TPS connector | 4 (TPS1) | TPS connector | 5 (TPS 2) | Fig.1 |
Good
- If no problems were found with the circuits or connectors, replace the ECM and go to "Verification Of Repair " procedure.
No Good
- If no problems were found with the circuits or connectors, replace the throttle body and go to "Verification Of Repair " procedure.
