Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 - 6

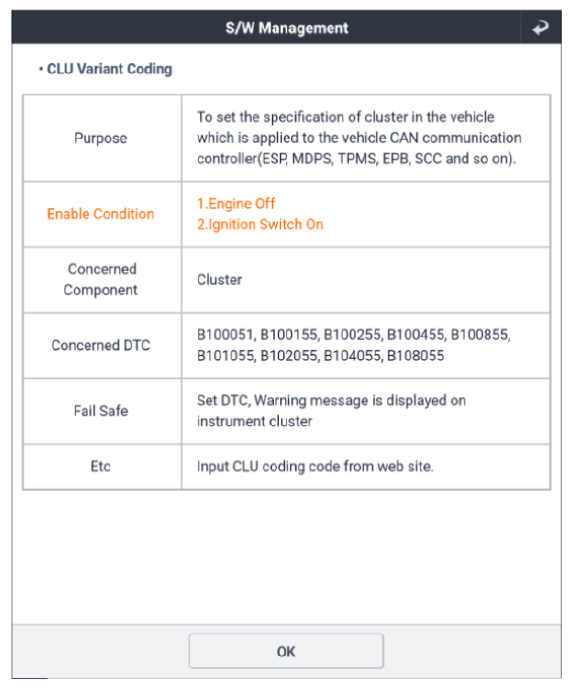

G12993191Courtesy of KIA MOTORS AMERICA, INC.

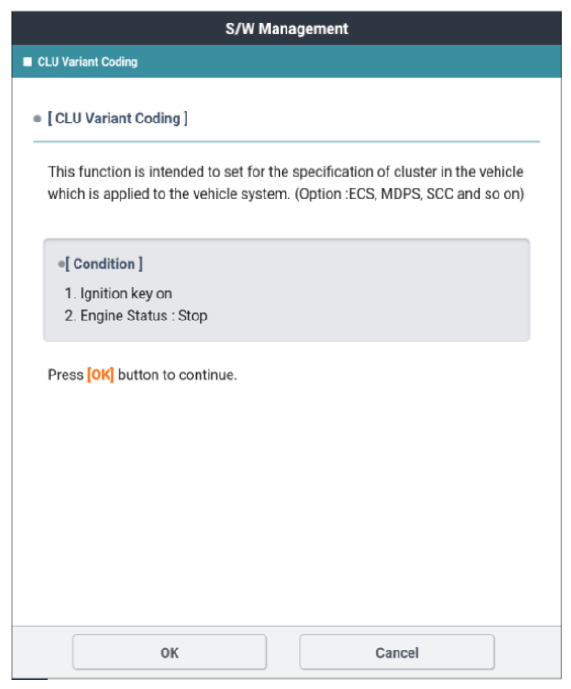

G12993192Courtesy of KIA MOTORS AMERICA, INC.

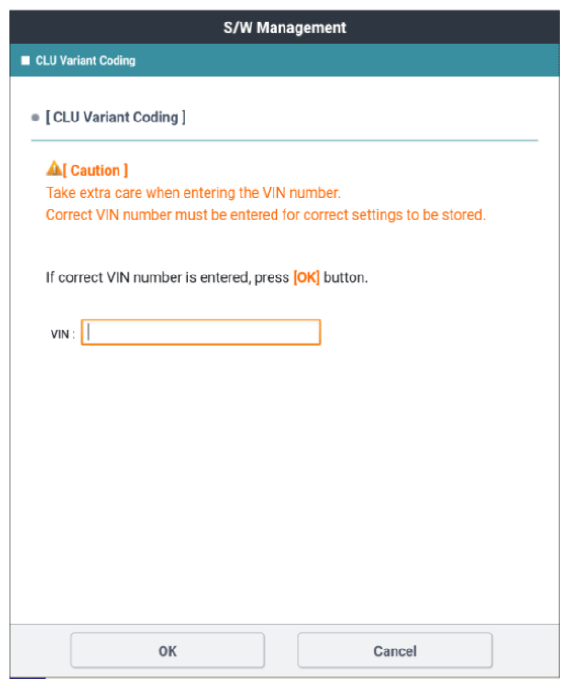

G12993193Courtesy of KIA MOTORS AMERICA, INC.

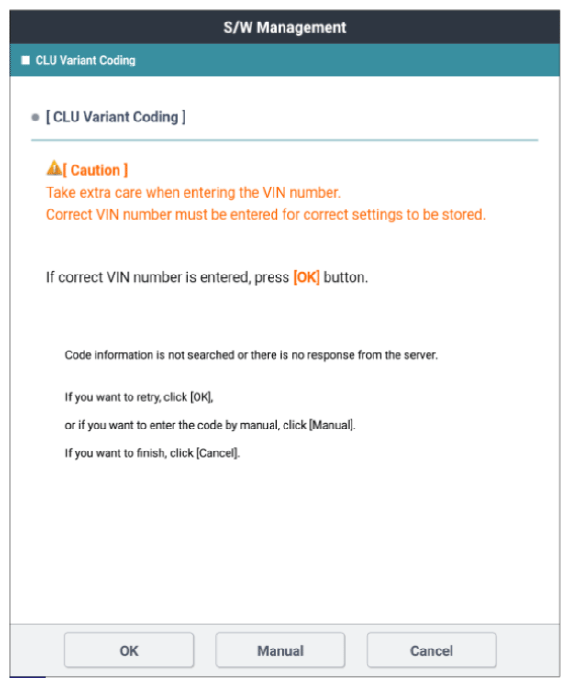

G12993194Courtesy of KIA MOTORS AMERICA, INC.

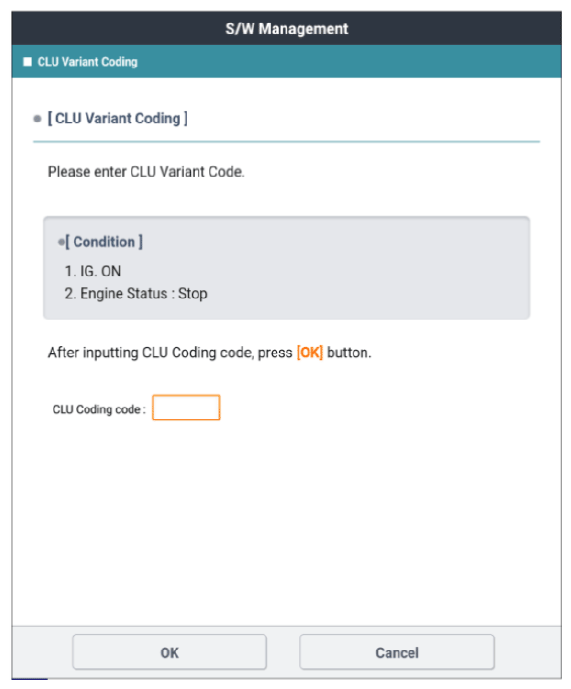

G12993195Courtesy of KIA MOTORS AMERICA, INC.

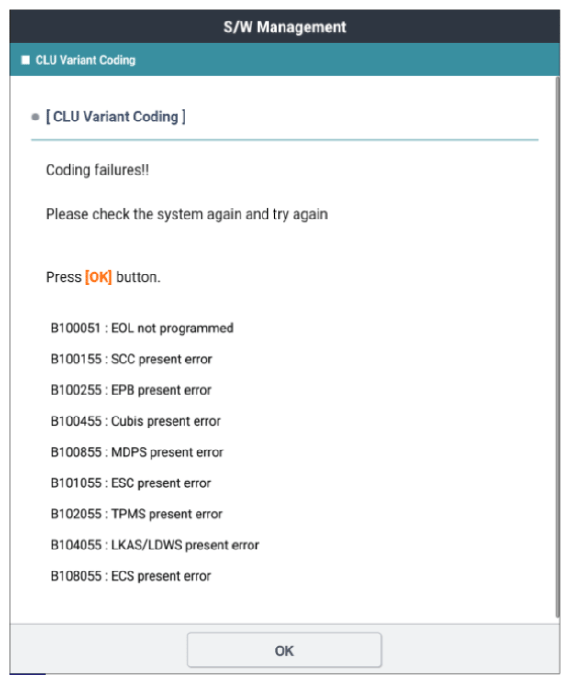

G12993196Courtesy of KIA MOTORS AMERICA, INC.
