Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "Vehicle S/W Management" with KDS.
  3. Perform "Air Bleeding Mode" in "Vehicle S/W Management" with KDS.
  4. After this procedure, go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 4 below.
CAUTION: This is the function to discharge the air inside the oil.

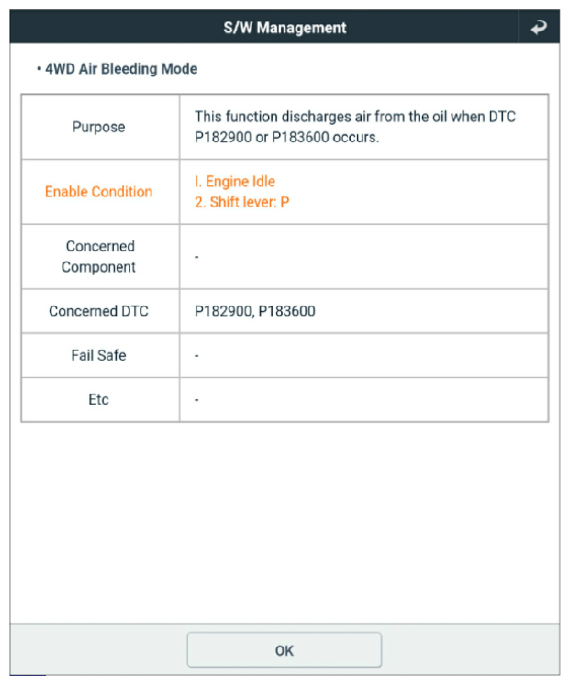

G13132562Courtesy of KIA MOTORS AMERICA, INC.

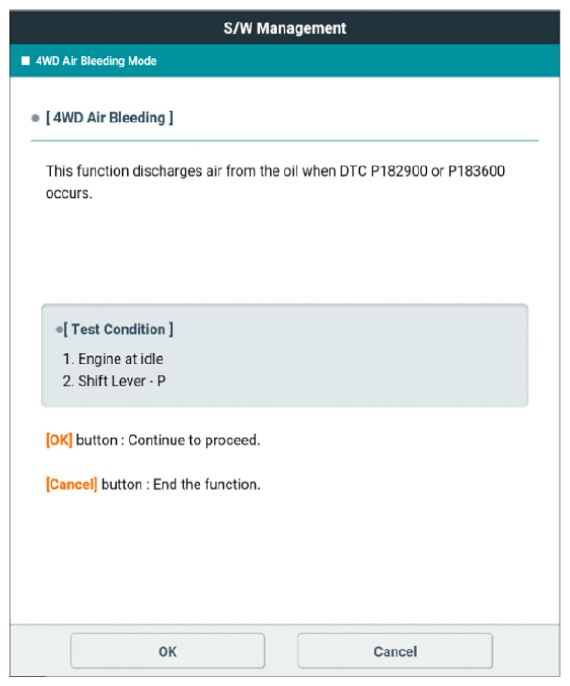

G13132563Courtesy of KIA MOTORS AMERICA, INC.

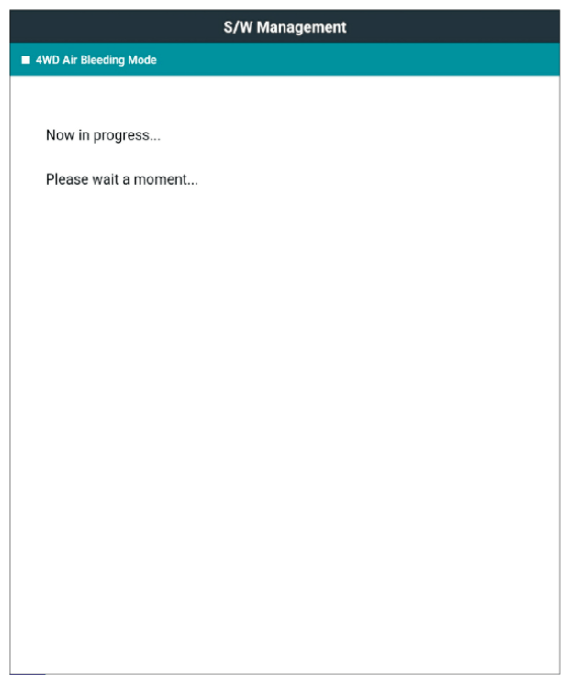

G13132564Courtesy of KIA MOTORS AMERICA, INC.
G13132565Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "Vehicle S/W Management" with KDS.
  3. Perform "Adaptive Value BackUp & Input (ECU replacement)" in "Vehicle S/W Management" with KDS.
  4. After this procedure, go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9 below.
CAUTION: Perform the following procedure when replacing the ECU.
G13132566Courtesy of KIA MOTORS AMERICA, INC.

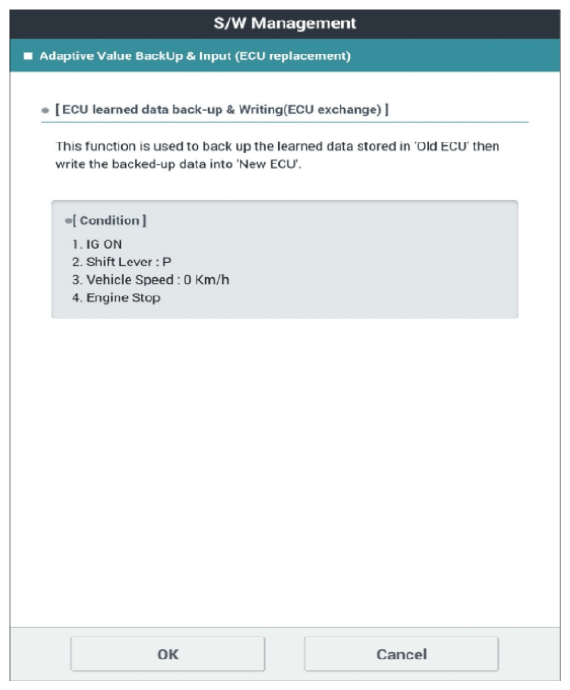

G13132567Courtesy of KIA MOTORS AMERICA, INC.

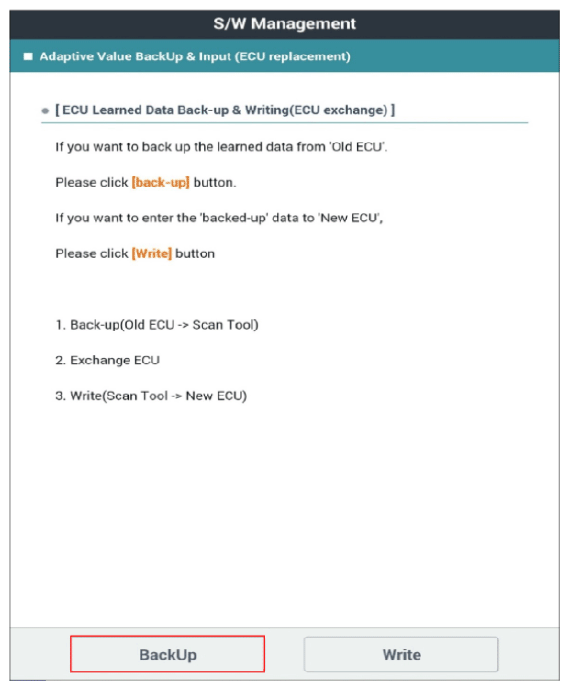

G13132568Courtesy of KIA MOTORS AMERICA, INC.

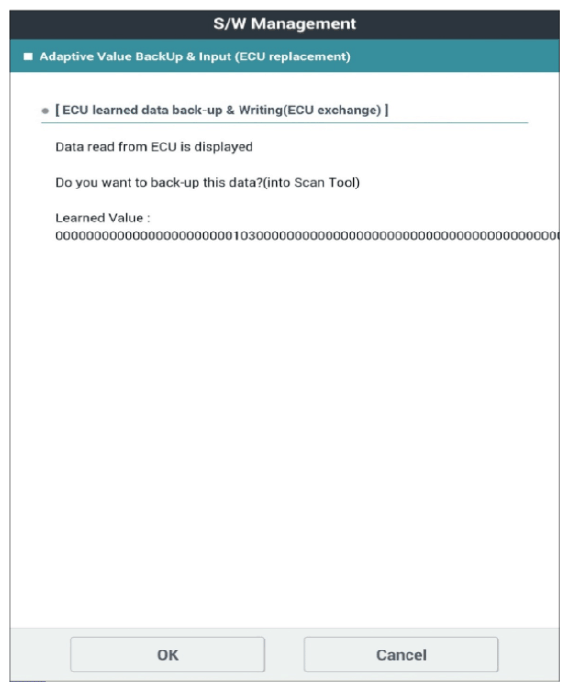

G13132569Courtesy of KIA MOTORS AMERICA, INC.

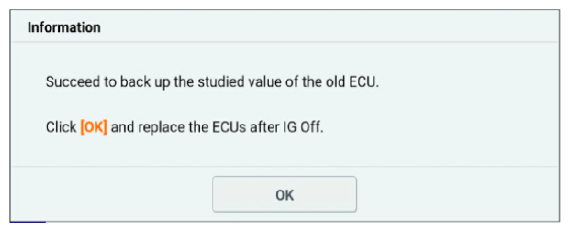

G13132570Courtesy of KIA MOTORS AMERICA, INC.
G13132571Courtesy of KIA MOTORS AMERICA, INC.

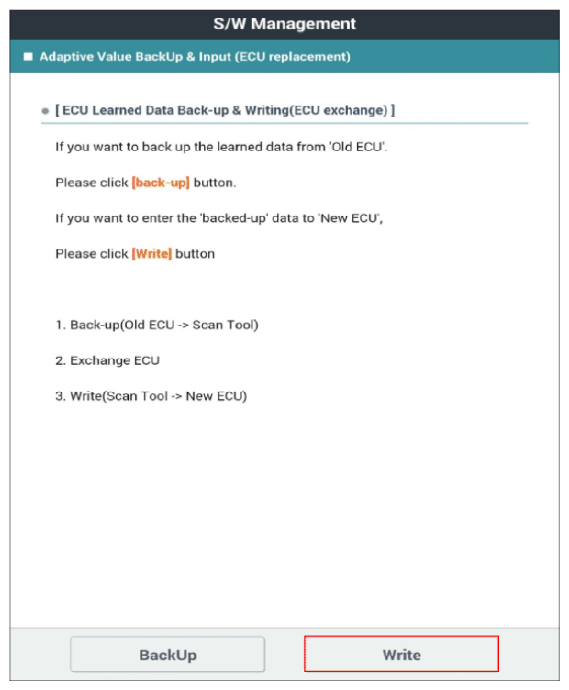

G13132572Courtesy of KIA MOTORS AMERICA, INC.

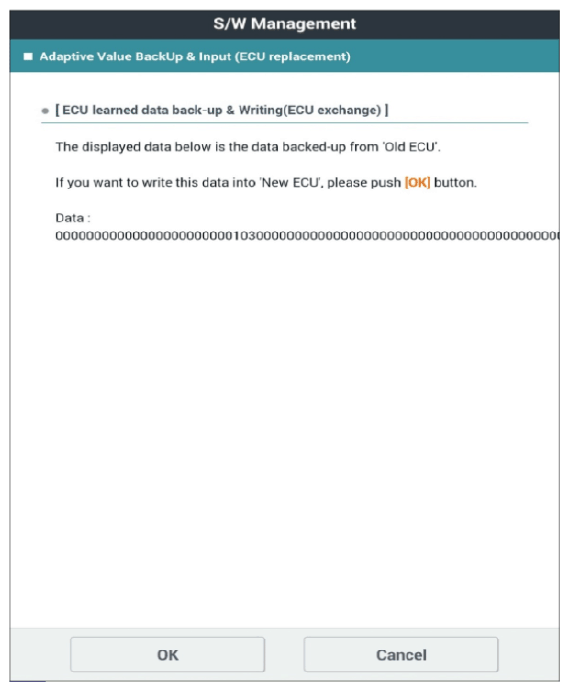

G13132573Courtesy of KIA MOTORS AMERICA, INC.

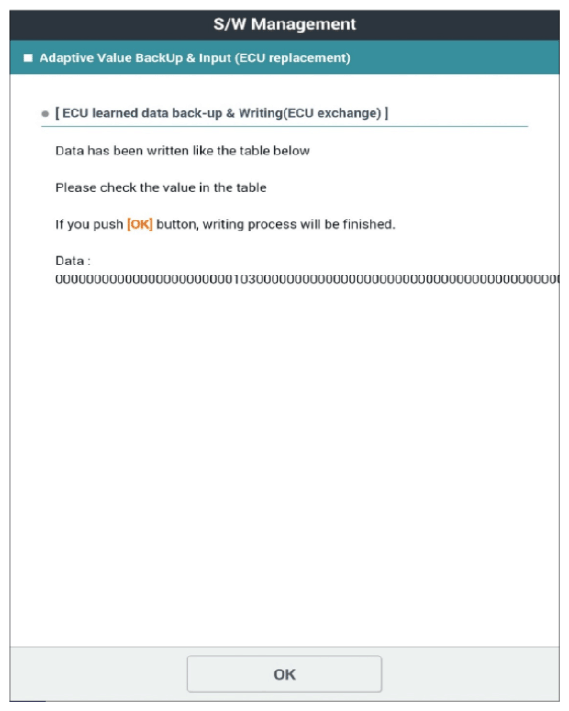

G13132574Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "Vehicle S/W Management" with KDS.
  3. Perform "Adaptive Value BackUp & Input (ECU & Transfer Assy replacement at once)" in "Vehicle S/W Management" with KDS.
  4. After this procedure, go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9 below.
CAUTION: Perform the following procedure when replacing the ECU & Transfer Assy at the same time.

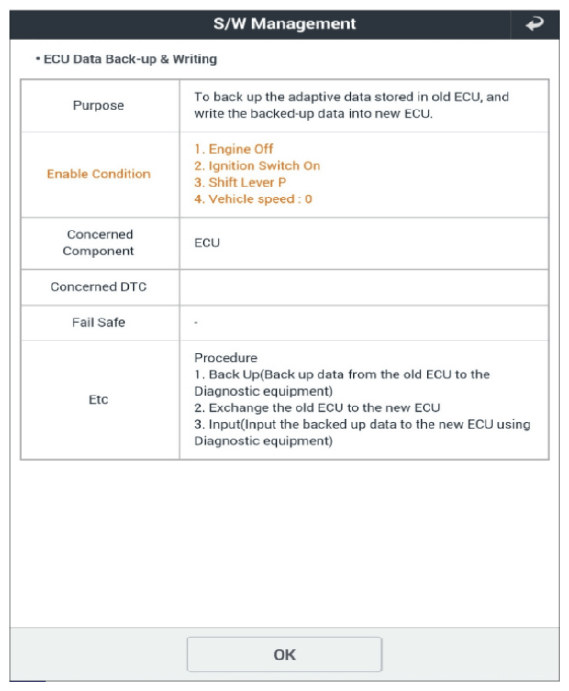

G13132575Courtesy of KIA MOTORS AMERICA, INC.

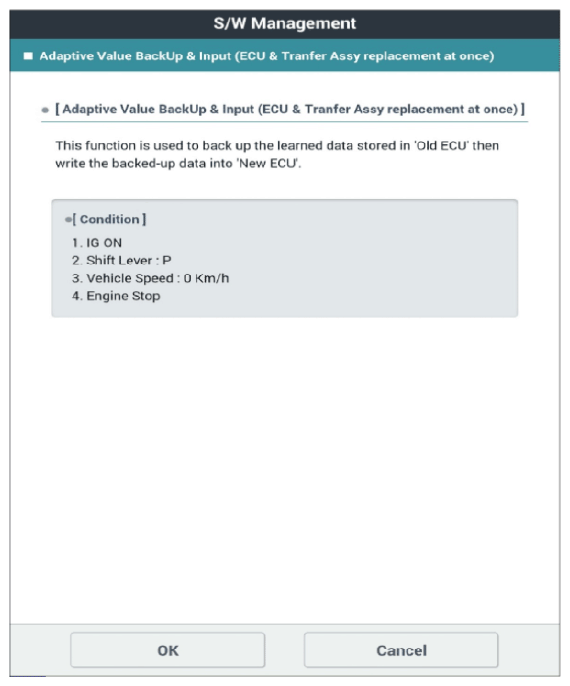

G13132576Courtesy of KIA MOTORS AMERICA, INC.

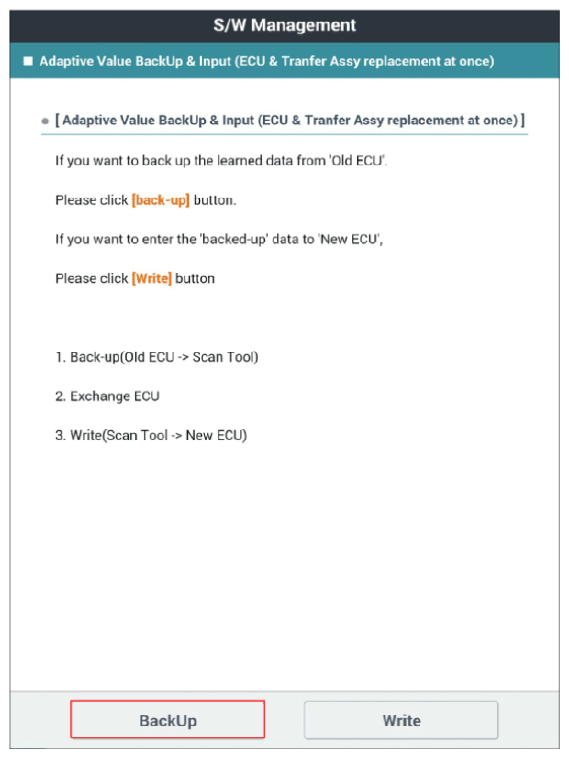

G13132577Courtesy of KIA MOTORS AMERICA, INC.

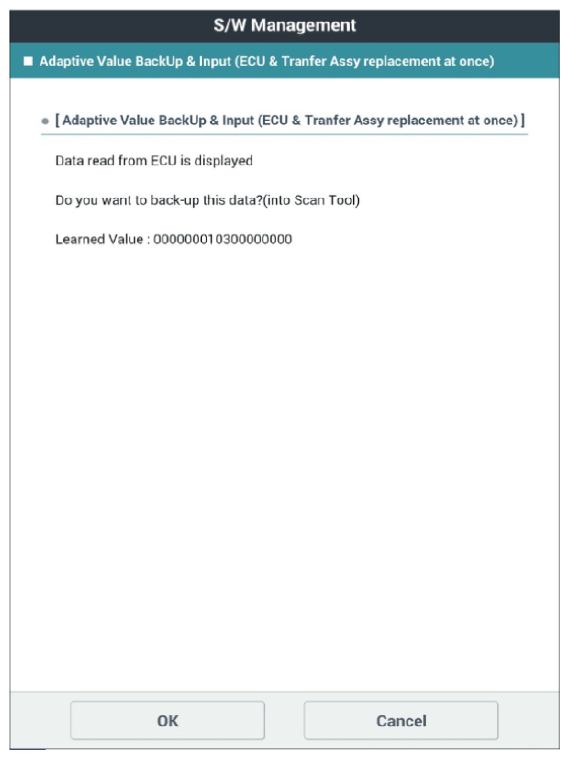

G13132578Courtesy of KIA MOTORS AMERICA, INC.

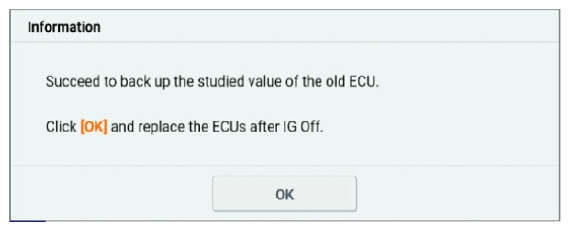

G13132579Courtesy of KIA MOTORS AMERICA, INC.

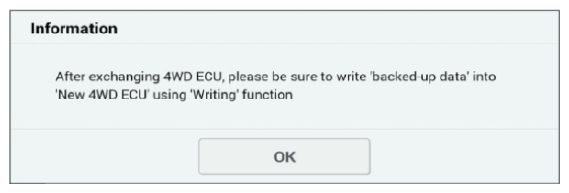

G13132580Courtesy of KIA MOTORS AMERICA, INC.

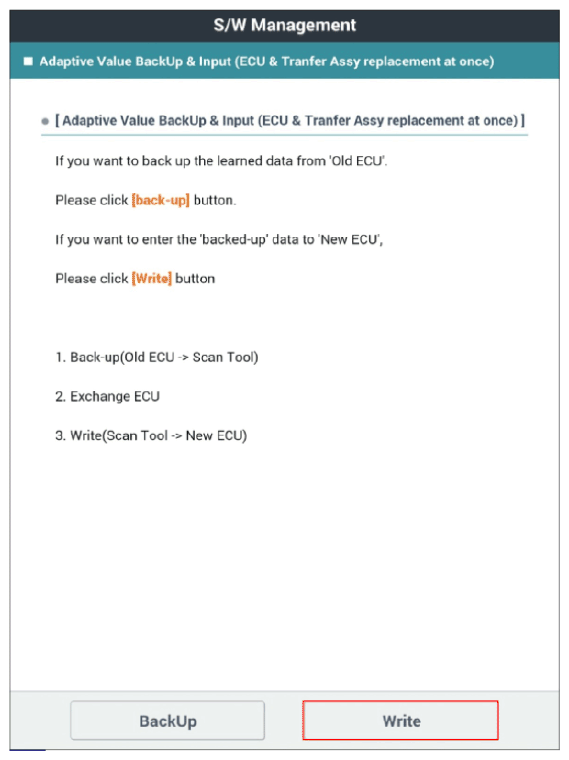

G13132581Courtesy of KIA MOTORS AMERICA, INC.

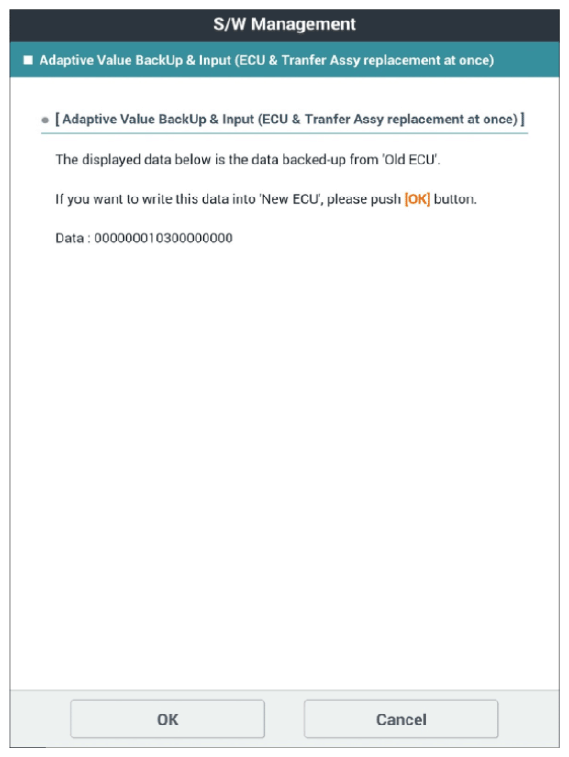

G13132582Courtesy of KIA MOTORS AMERICA, INC.

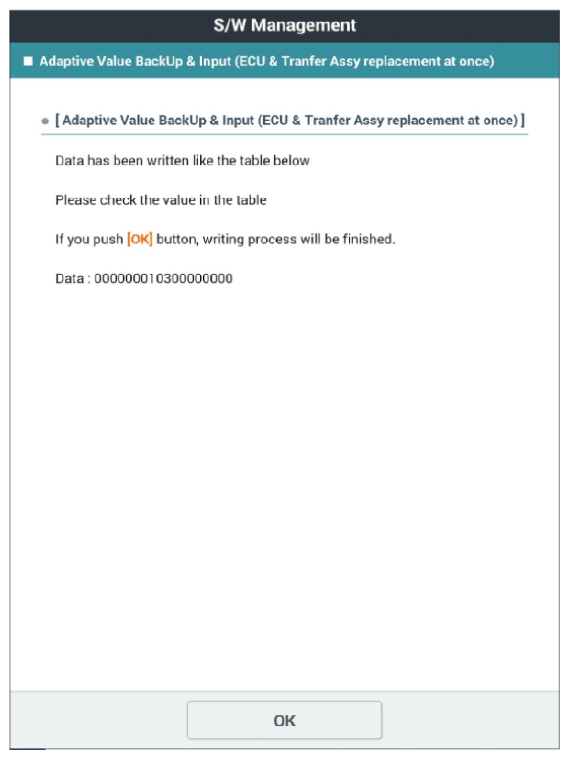

G13132583Courtesy of KIA MOTORS AMERICA, INC.
