Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

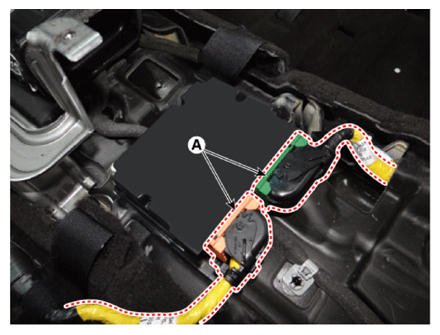

  3. Disconnect the connector (A) from Supplemental Restraint System Control Module (SRSCM).
    G13127603Courtesy of KIA MOTORS AMERICA, INC.

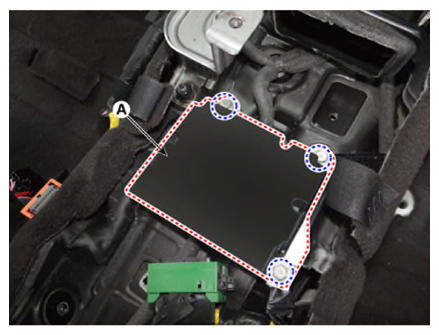

  4. Remove the Supplemental Restraint System Control Module (A) after loosening the mounting bolts.

    Tightening torque:

    7.8 - 13.7 N.m (0.8 - 1.4 kgf.m, 5.7 - 10.1 lb.ft)

    G13127604Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Switch "OFF? the ignition when removing or installing SRSCM or other SRS components to avoid accidental airbag deployment.
    NOTE: Be careful not to damage the SRSCM connector.
