Circuit Inspection

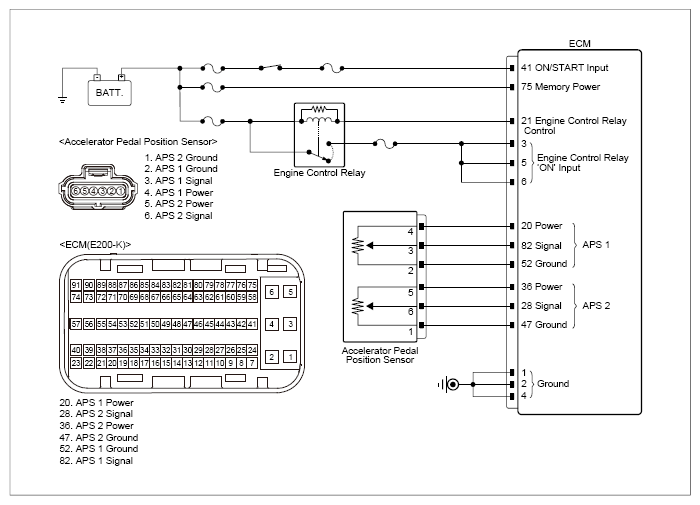

G13134170

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector (s) from the concerned component. Ignition "ON".	APS2 connector	5 (power)	Chassis ground	-	Approx. 5V
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component.	APS2 connector	1 (ground)	Chassis ground	-	Approx. 1Ω
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component and ECM.	APS2 connector	6 (signal)	ECM connector	28 (signal)	Approx. 1Ω
	APS2 connector	6 (signal)	Chassis ground	-	∞ (Infinite)Ω
	APS2 connector	6 (signal)	APS2 connector	5 (power)	∞ (Infinite)Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the Accelerator Pedal Sensor and go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
