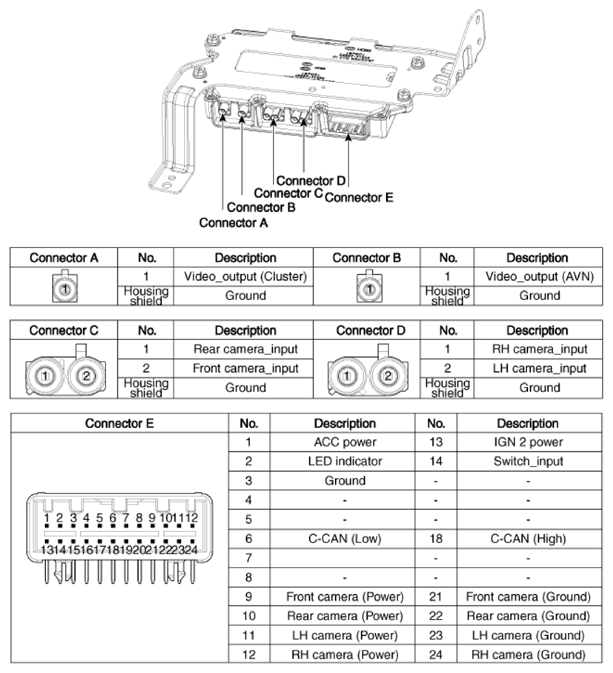

Home >> Kia >> 2019 >> K900 >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Surround View Monitor (SVM) System >> SVM Unit >> Schematic Diagrams >> Connector and Terminal function
