Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the knee airbag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

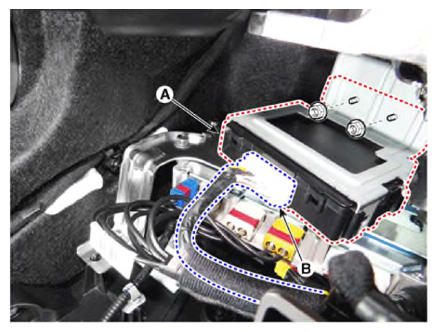

  3. Disconnect the connector (B) after removing the telescopic tilt unit (A) by loosening the mounting nuts.
    G13129220Courtesy of KIA MOTORS AMERICA, INC.

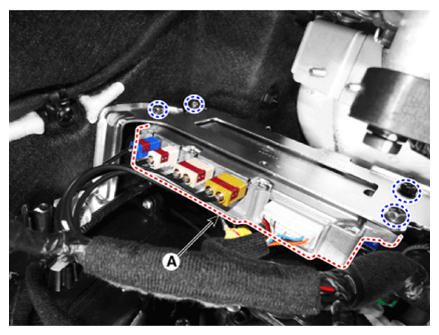

  4. Remove the surround view monitor unit (A) from the bracket after loosening the mounting bolts.
    G13129221Courtesy of KIA MOTORS AMERICA, INC.

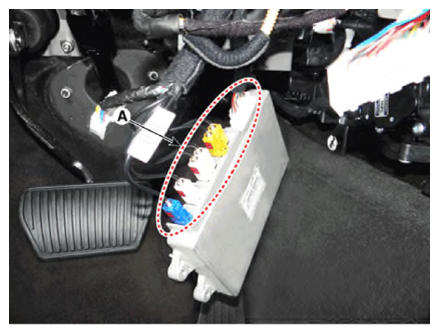

  5. Disconnect the connector (A) from the SVM unit.
G13129222Courtesy of KIA MOTORS AMERICA, INC.
