Repair Procedures: Removal

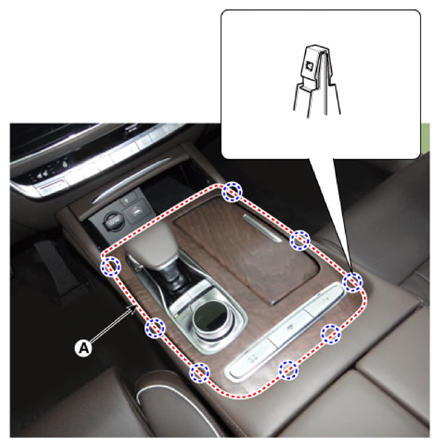

  1. Remove the console upper cover (A) by using a flat-tip screwdriver or remover.
    NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
    G13129225Courtesy of KIA MOTORS AMERICA, INC.

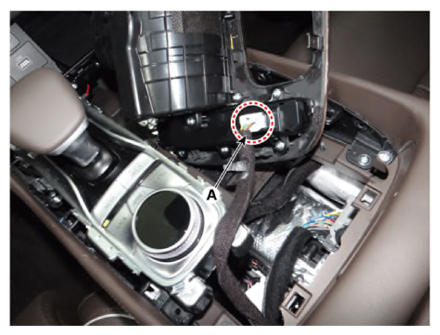

  2. Disconnect the connector (A) from the console upper cover.
    G13129226Courtesy of KIA MOTORS AMERICA, INC.

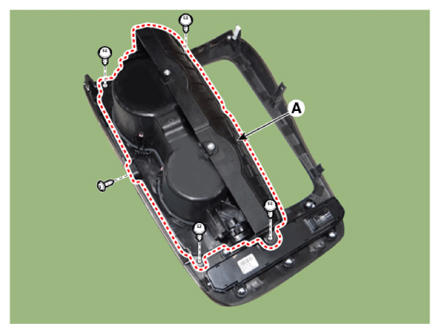

  3. Remove the cup holder (A) after loosening the mounting screws.
    G13129227Courtesy of KIA MOTORS AMERICA, INC.

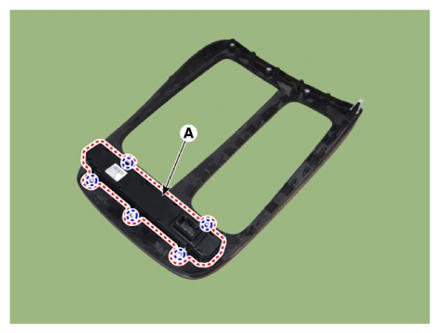

  4. Remove the switch assembly (A) after loosening the mounting screws.
G13129228Courtesy of KIA MOTORS AMERICA, INC.
