Side View Camera

  1. Disconnect the negative battery terminal.
  2. Remove the outside rear view mirror.

    (Refer to Body - "OUTSIDE REAR VIEW MIRROR ")

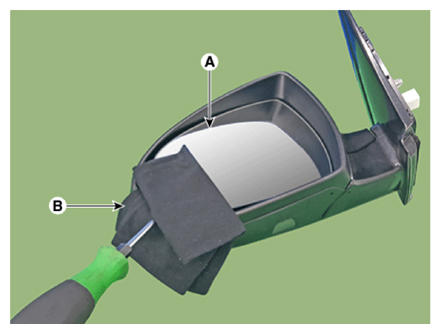

  3. Remove the mirror (A) from the mirror holder.
    NOTE:
    • Protect mirror from removing tool with cloth (B) wrapped.
    • Be careful not to damage mirror and mirror housing during removing process.
    • Apply force around the center of mirror because to apply force the end of mirror will break it.
    G13129235Courtesy of KIA MOTORS AMERICA, INC.

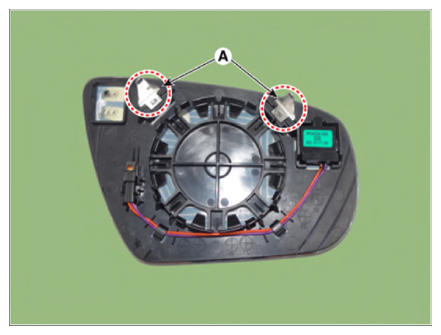

    CAUTION: Be careful not to damage the fixing clips (A).
    G13129236Courtesy of KIA MOTORS AMERICA, INC.

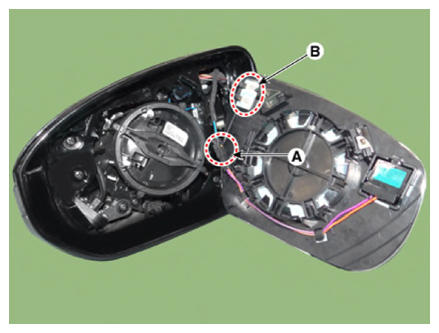

  4. Disconnect the mirror heat connector (B) and BCW warning indicator connector (A).
    G13129237Courtesy of KIA MOTORS AMERICA, INC.

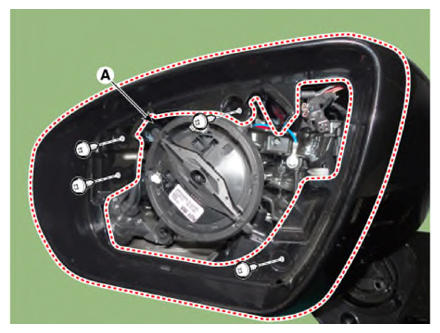

  5. Remove the door mirror housing (A) after loosening the screws.
    G13129238Courtesy of KIA MOTORS AMERICA, INC.

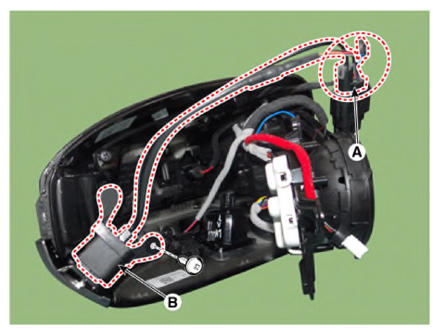

  6. Remove the side view camera (B) by loosening the mounting screw after disconnecting the connector (A).
G13129239Courtesy of KIA MOTORS AMERICA, INC.
