Rear View Camera

  1. Disconnect the negative battery terminal.
  2. Remove the trunk lid back panel.

    (Refer to Body - "TRUNK LID BACK PANEL ")

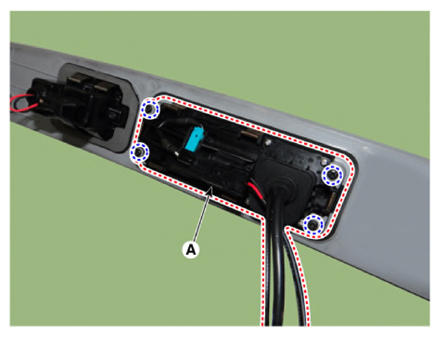

  3. Remove the rear view camera & trunk lid switch assembly (A) after loosening the mounting screws.
G13129240Courtesy of KIA MOTORS AMERICA, INC.
