Front View Camera

  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

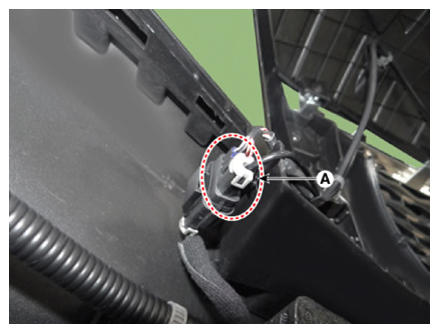

  3. Disconnect the front view camera connector (A).
    G13129233Courtesy of KIA MOTORS AMERICA, INC.

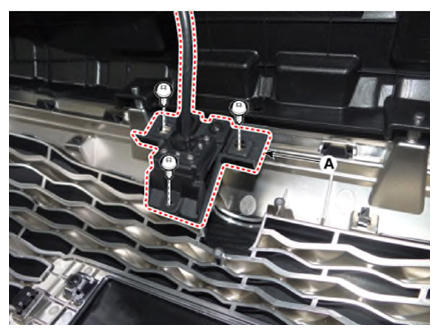

  4. Remove the front view camera (A) after loosening the mounting screws.
G13129234Courtesy of KIA MOTORS AMERICA, INC.
