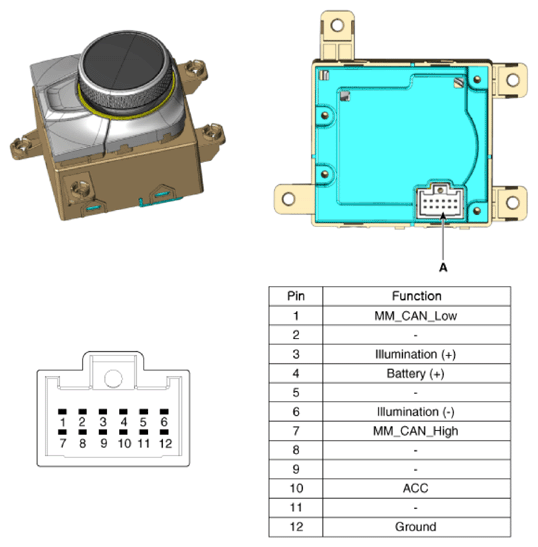

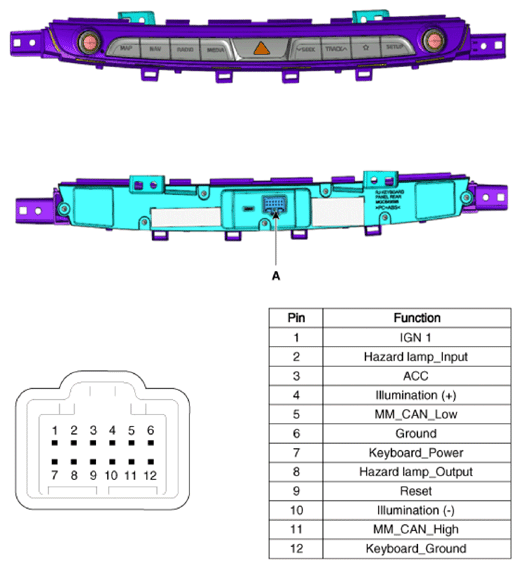

Home >> Kia >> 2019 >> K900 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Audio/Video/Navigation (AVN) System >> Front Keyboard Unit >> Schematic Diagrams >> Connector And Terminal Function
