Repair Procedures: Inspection

  1. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - " BATTERY  ")

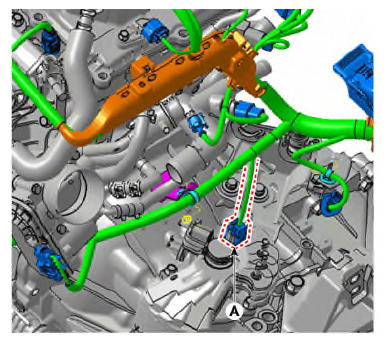

  3. Disconnect the back up lamp switch connector (A).
    G12830476Courtesy of KIA MOTORS AMERICA, INC.

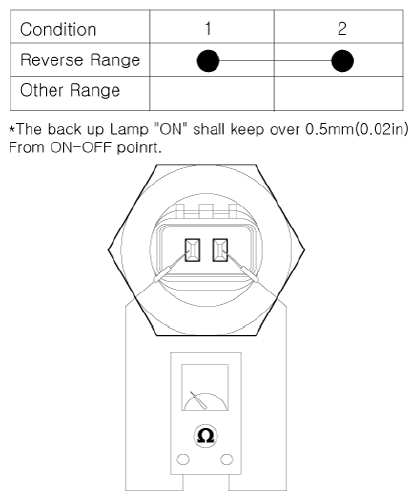

  4. Check the continuity between power terminal and signal terminal.
    G12830477Courtesy of KIA MOTORS AMERICA, INC.
