Passenger's Mode Actuator

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

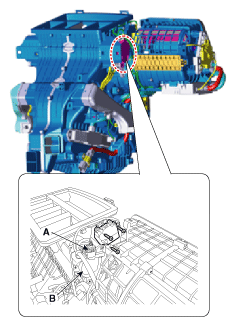

  3. Disconnect the mode control actuator connector (A).

    And then remove the mode control actuator (B) after loosening the mounting screws.

    G11938334Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
