Signal Waveform & Data

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
G12813879Courtesy of KIA MOTORS AMERICA, INC.

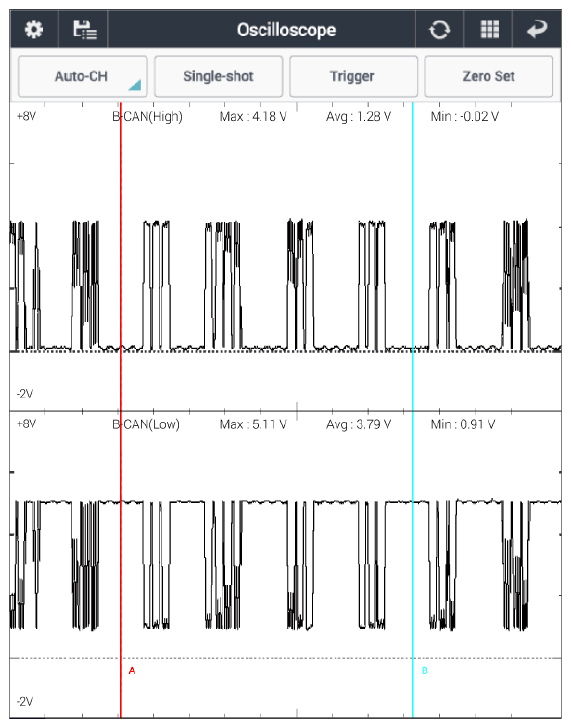

Figure) B-CAN Low/High Signal Waveform
