Inside Rear Combination Lamp Bulb

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

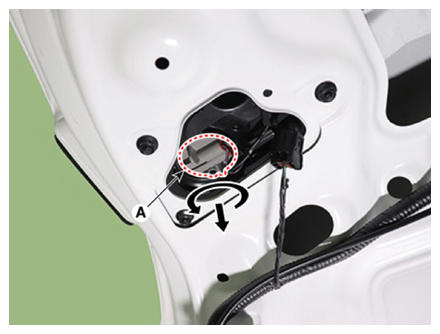

  3. Remove the tail lamp socket (A) after turning in the counterclockwise direction.
    G14564027Courtesy of KIA MOTORS AMERICA, INC.

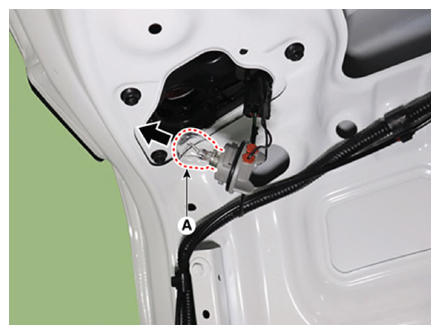

  4. Replacement the tail/stop lamp bulb (A).
    G14564028Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse of the removal.
