Commercial Tool

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Tool Name	Illustration	Description
Battery lift table	Courtesy of KIA MOTORS AMERICA, INC.	Removing and installing battery pack assembly pack weight: 277 kg pack size: 1647 mm x 996 mm x 261 mm
Multi tester	Courtesy of KIA MOTORS AMERICA, INC.	Measuring resistance, voltage, and resistance
Insulation resistance tester (Multi tester)	Courtesy of KIA MOTORS AMERICA, INC.	Measuring insulation resistance, voltage, and resistance
Crane jack	Courtesy of KIA MOTORS AMERICA, INC.	Removing and installing battery pack assembly pack weight: 277 kg pack size: 1647 mm x 996 mm x 261 mm
Insulated Tool Set 0K375-4U000	Courtesy of KIA MOTORS AMERICA, INC.	Used for measuring or work to high voltage parts-22EA components (Include case)

Information

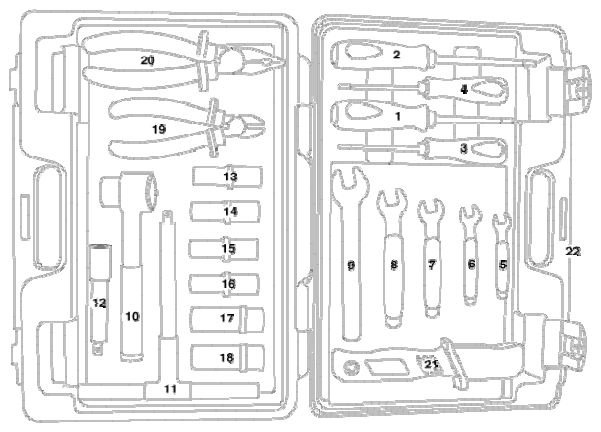

Courtesy of KIA MOTORS AMERICA, INC.

No.	Tool Name	Tool Number	Illustration
1	Insulated Flathead Screwdriver-6"	0K375-4U100	Courtesy of KIA MOTORS AMERICA, INC.
2	Insulated Philips Screwdriver-6"	0K375-4U110	Courtesy of KIA MOTORS AMERICA, INC.
3	Insulated Flathead Screwdriver-4"	0K375-4U120	Courtesy of KIA MOTORS AMERICA, INC.
4	Insulated Philips Screwdriver-4"	0K375-4U130	Courtesy of KIA MOTORS AMERICA, INC.
5	Insulated Spanner-8 mm	0K375-4U140	Courtesy of KIA MOTORS AMERICA, INC.
6	Insulated Spanner-10 mm	0K375-4U150	Courtesy of KIA MOTORS AMERICA, INC.
7	Insulated Spanner-12 mm	0K375-4U160	Courtesy of KIA MOTORS AMERICA, INC.
8	Insulated Spanner-12 mm	0K375-4U170	Courtesy of KIA MOTORS AMERICA, INC.
9	Insulated Spanner-17 mm	0K375-4U180	Courtesy of KIA MOTORS AMERICA, INC.
10	Insulated Ratchet Wrench-3/8"	0K375-4U190	Courtesy of KIA MOTORS AMERICA, INC.
11	Insulated T-Socket Wrench-3/8"	0K375-4U200	Courtesy of KIA MOTORS AMERICA, INC.
12	Insulated Socket Extension Bar-3/8"	0K375-4U210	Courtesy of KIA MOTORS AMERICA, INC.
13	Insulated Socket-8 mm	0K375-4U220	Courtesy of KIA MOTORS AMERICA, INC.
14	Insulated Socket-10 mm	0K375-4U230	Courtesy of KIA MOTORS AMERICA, INC.
15	Insulated Socket-12 mm	0K375-4U240	Courtesy of KIA MOTORS AMERICA, INC.
16	Insulated Socket-14 mm	0K375-4U250	Courtesy of KIA MOTORS AMERICA, INC.
17	Insulated Socket-17 mm	0K375-4U260	Courtesy of KIA MOTORS AMERICA, INC.
18	Insulated Socket-19 mm	0K375-4U270	Courtesy of KIA MOTORS AMERICA, INC.
19	Insulated Nippers-6"	0K375-4U280	Courtesy of KIA MOTORS AMERICA, INC.
20	Insulated Pliers-8"	0K375-4U290	Courtesy of KIA MOTORS AMERICA, INC.
21	Insulated Cutter	0K375-4U300	Courtesy of KIA MOTORS AMERICA, INC.
22	Insulated Tool Box	0K375-4U310	Courtesy of KIA MOTORS AMERICA, INC.
