Circuit Inspection

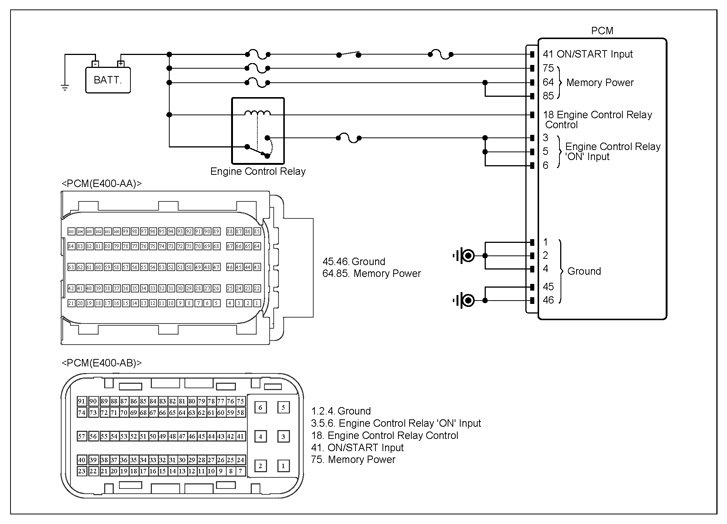

G12851596

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Ignition "OFF" & Disconnect PCM connector.	PCM harness connector	64/75/85 (memory power)	Chassis ground	-	Battery voltage
Ignition "ON".	PCM harness connector	41 (ON/START Input)	Chassis ground	-	Battery voltage
Ignition "ON".	PCM harness connector	3/5/6 (Engine Control Relay 'ON' Input)	Chassis ground	-	Battery voltage

Good

Go to "SYSTEM INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
