Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Longitudinal G Sensor Calibration (HAC/DBC Only). Ignition "ON".	Connect KDS to Data Link Connector (DLC). Perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with KDS.	Fig.1 to 5

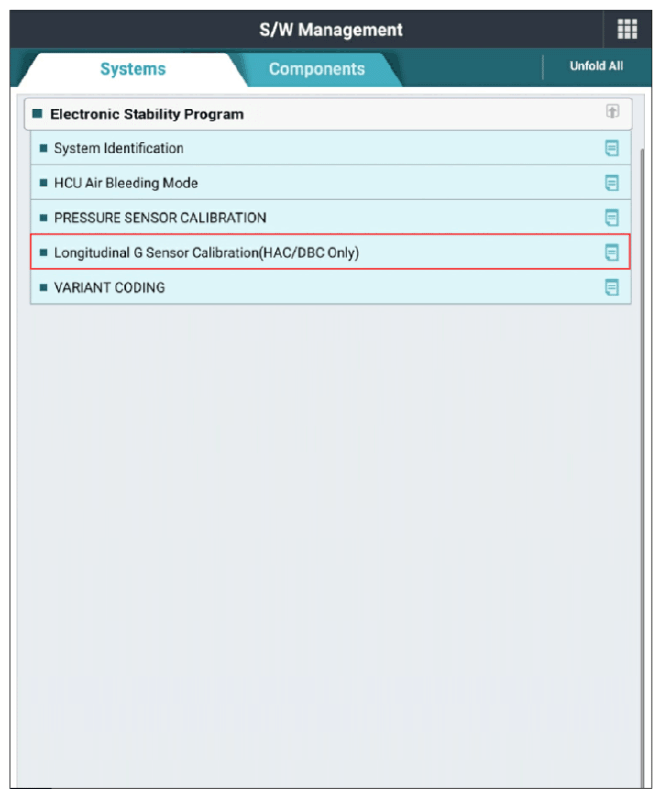

G12852717

Courtesy of KIA MOTORS AMERICA, INC.

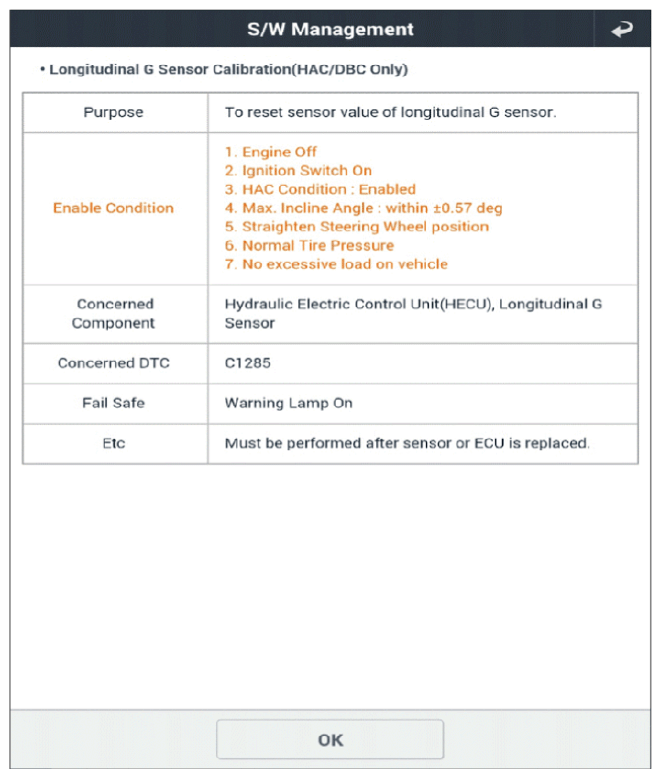

G12852718

Courtesy of KIA MOTORS AMERICA, INC.

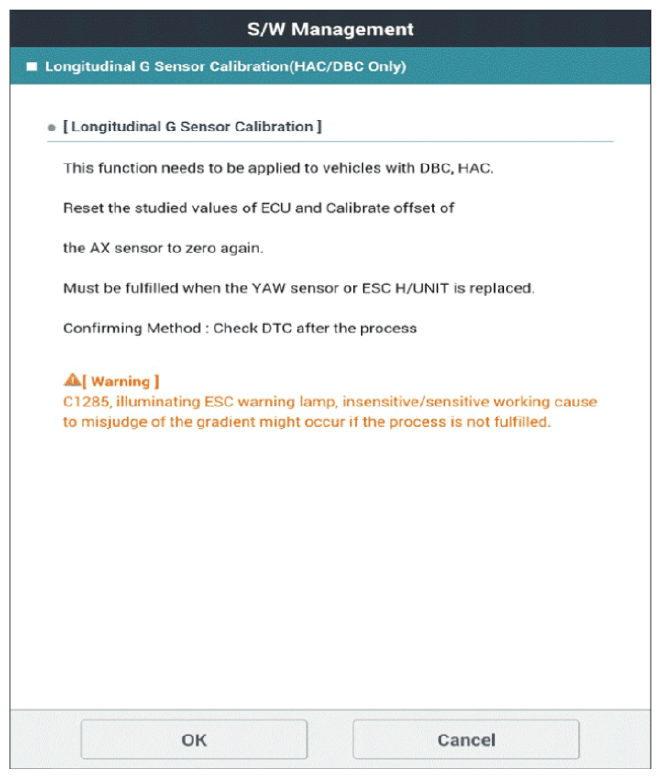

G12852719

Courtesy of KIA MOTORS AMERICA, INC.

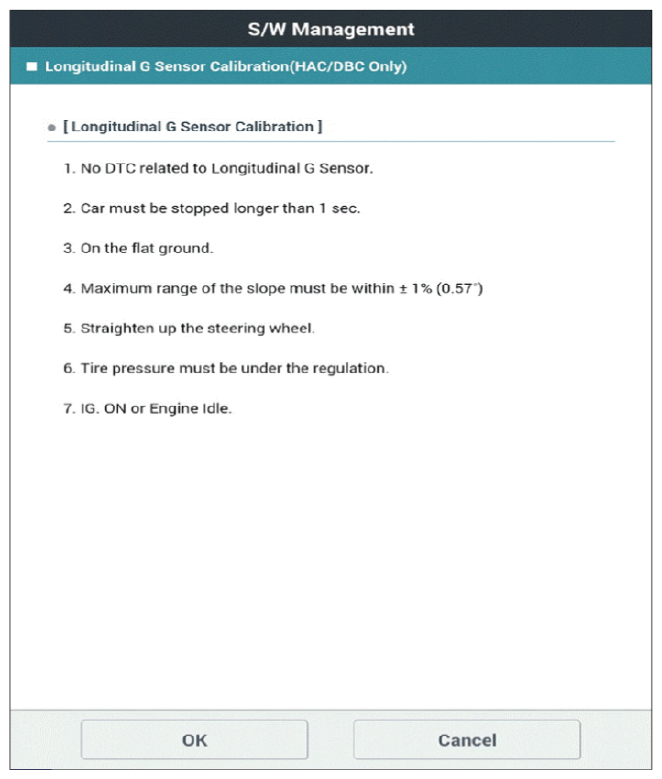

G12852720

Courtesy of KIA MOTORS AMERICA, INC.

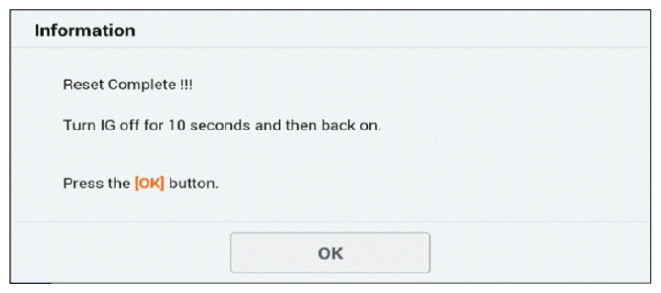

G12852721

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
