Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • When installing, place the wiper arm to the specified position and then tighten the nut.

    [Passenger side]

    • Place the wiper of passenger side to the marking (A) position of cowl top cover.
      G12832821Courtesy of KIA MOTORS AMERICA, INC.

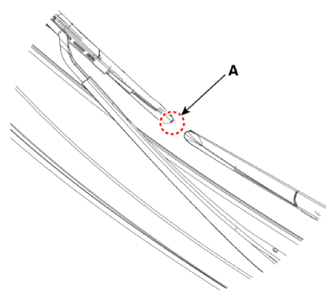

      [Driver side]

    • Place the wiper of driver side to the end (A) of passenger wiper blade.
G12832822Courtesy of KIA MOTORS AMERICA, INC.
