Connector And Terminal Function

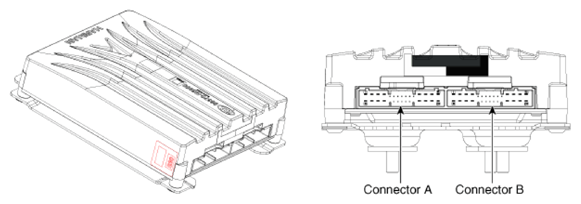

Fig 1: External AMP Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

No.	Connector A	Connector B
1	Battery (+)	Sub woofer speaker 2 (+)
2	Battery (+)	Sub woofer speaker 1 (+)
3	Battery (+)	Front door right tweeter speaker (+)
4	Battery (+)	Front door left tweeter speaker (+)
5	-	-
6	Multimedia-CAN (High)	-
7	Multimedia-CAN (Low)	-
8	ACC	-
9	Amplifier navigation voice (+)	-
10	-	-
11	-	-
12	-	Rear door right speaker (+)
13	-	Rear door left speaker (+)
14	-	Front center speaker (+)
15	-	-
16	Ground	Sub woofer speaker 2 (-)
17	Ground	Sub woofer speaker 1 (-)
18	Ground	Front door right tweeter speaker (-)
19	Ground	Front door left tweeter speaker (-)
20	Amplifier SPDIF (High)	-
21	Amplifier SPDIF (Low)	-
22	Amplifier SPDIF (Ground)	-
23	Amplifier navigation voice (-)	-
24	-	-
25	-	Rear door right speaker (-)
26	-	Rear door left speaker (-)
27	-	Front center speaker (-)
28	-	-
