Removal And Installation

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - " STEERING WHEEL  ")

  3. Remove the steering wheel bezel assembly (A) after loosening the mounting screws.

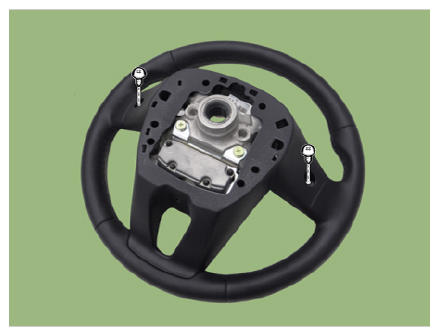

    G12830106Courtesy of KIA MOTORS AMERICA, INC.

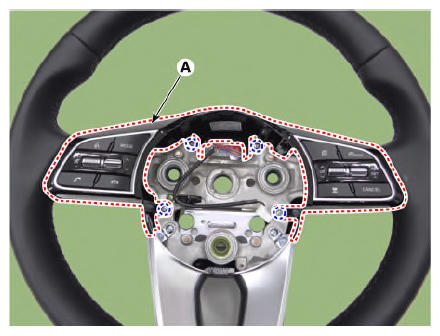

    G12830107Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connector (A) from steering wheel remote control.

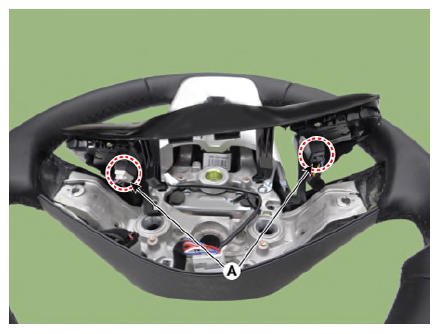

    G12830108Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the steering wheel remote control (A) from bezel after loosening the screws.

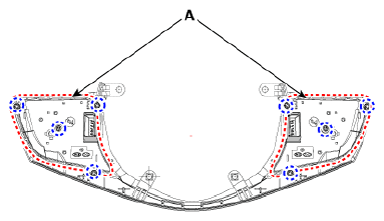

    G12830109Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
