Cadenza Technology
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Advanced Smart Cruise Control System
>>
Advanced Smart Cruise Control (ASCC) Switch
>>
Schematic Diagrams
>>
Circuit Diagram
>>
[Trip + ACC]
[Trip + ACC]

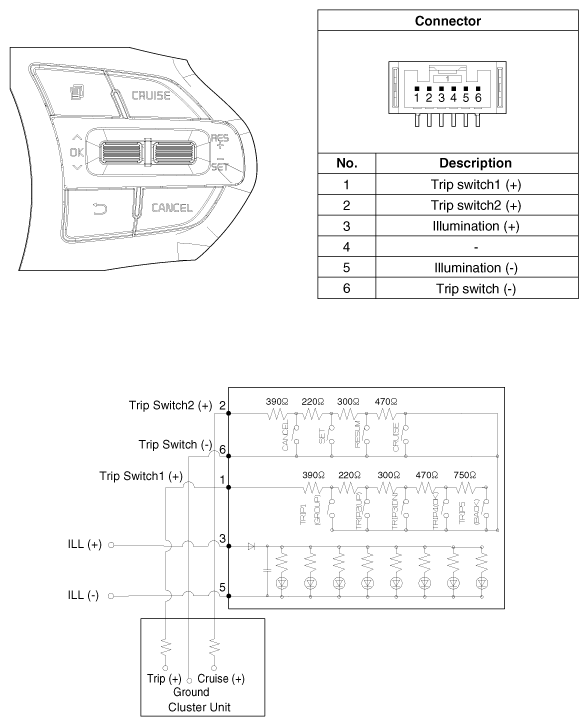

Fig 1: Advanced Smart Cruise Control (ASCC) Switch Circuit Diagram And Connector End View (Trip + ACC)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
